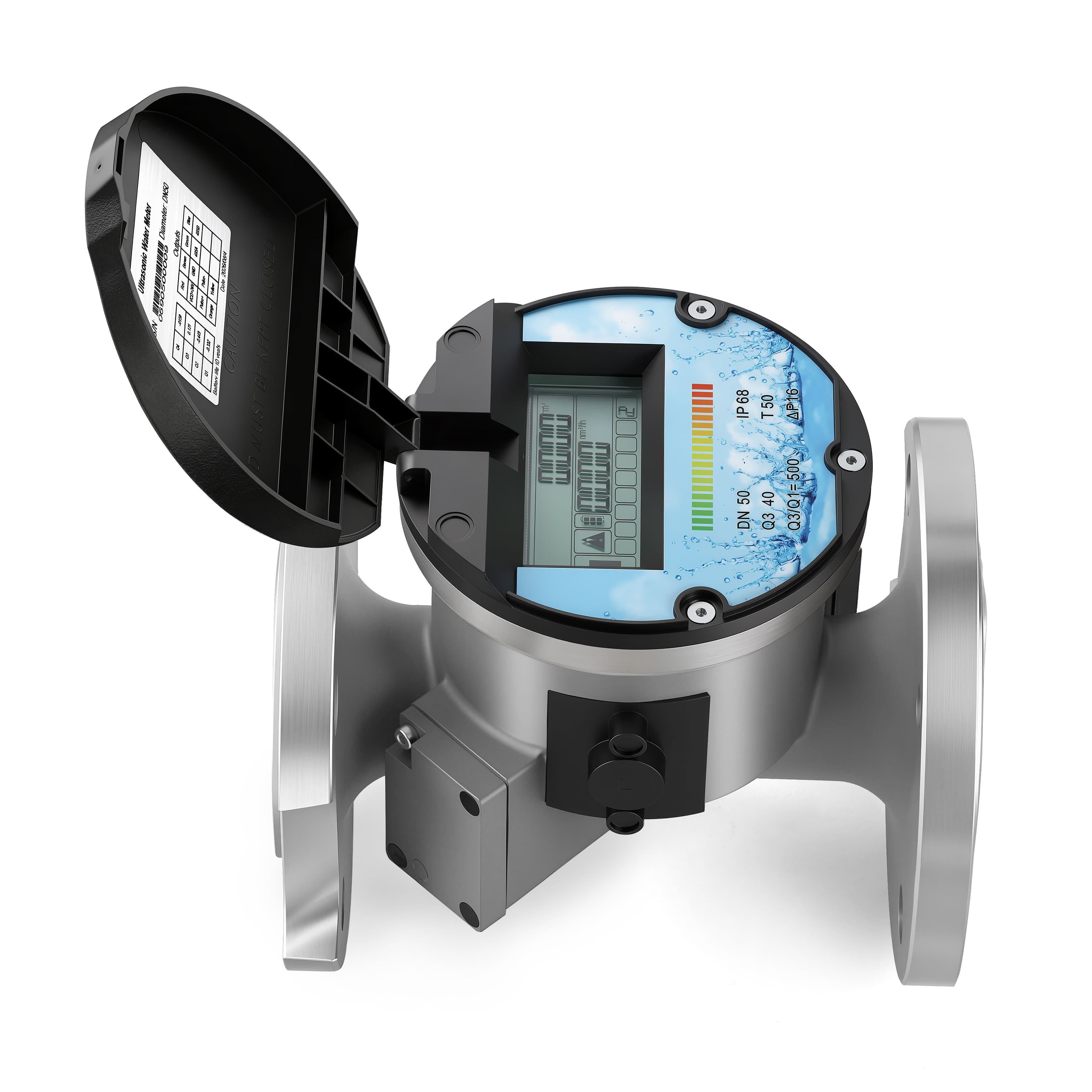

Ultrawater Serials Ultrasonic Water Meter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerLanry Instruments
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizes2″ / 3″ / 4″ / 6″
MaterialTo confirm
ConnectionTo confirm
Reported size range; individual configurations require confirmation
Instrument specifications
TypesUltrawater
Flow rate m³/hDN 50-2" / DN 65-2.5" / DN 80-3" / DN 100-4" / DN 150-6" / DN 200-8" / DN 250-10" / DN 300-12"
Q450 / 50 / 80 / 125 / 313 / 500 / 1250 / 1250
Q340 / 40 / 63 / 100 / 250 / 400 / 1000 / 1000
Q20.128 / 0.128 / 0.2 / 0.32 / 0.8 / 1.28 / 3.2 / 3.2
Q10.08 / 0.08 / 0.125 / 0.2 / 0.5 / 0.8 / 2 / 2
R=Q3/Q1500 / 500 / 500 / 500 / 500 / 500 / 500 / 500
Max. Working Pressure1.6Mpa
Pressure loss△P16
Temperature classT50
Work environmentTemperature: -25℃～55℃, Humidity: ≤100%（RH）
Electromagnetic compatibilityE2
Display9-bit LCD display. Can display totalizer, Instant flow, error alarm, flow direction, output
Data StorageCan storage the 10 years data, year, month and day
OutputModbus(baud rate：19200、9600、4800、2400); 4-20mA, Pulse,（default 2ml/pulse）
Power supplyDC3.6V(disposable lithium batteries) ≥ 15 years
Pipe RangeDN50-DN300
IP GradeIP68
Accuracy classClass 1
Process connectionFlange
TypesUltrawater
Nominal Diameter(mm) / 50 / 65 / 80 / 100 / 150 / 200 / 250 / 300
(inch)2 / 25 / 3 / 4 / 6 / 8 / 10 / 12
L- pipe length (mm)200 / 200 / 225 / 250 / 300 / 350 / 449 / 499
B- width (mm)165 / 185 / 200 / 220 / 285 / 340 / 406 / 489
H- height (mm)194 / 210 / 210 / 223 / 282 / 332 / 383 / 456
h- height (mm)40 / 90 / 90 / 103 / 140 / 165 / 203 / 245
Weight (mm)9 / 11.5 / 13 / 15 / 32 / 45 / 68 / 96
Manufacturer-reported specifications
Types: Ultrawater Flow rate m³/h: DN 50-2" / DN 65-2.5" / DN 80-3" / DN 100-4" / DN 150-6" / DN 200-8" / DN 250-10" / DN 300-12" Q4: 50 / 50 / 80 / 125 / 313 / 500 / 1250 / 1250 Q3: 40 / 40 / 63 / 100 / 250 / 400 / 1000 / 1000 Q2: 0.128 / 0.128 / 0.2 / 0.32 / 0.8 / 1.28 / 3.2 / 3.2 Q1: 0.08 / 0.08
