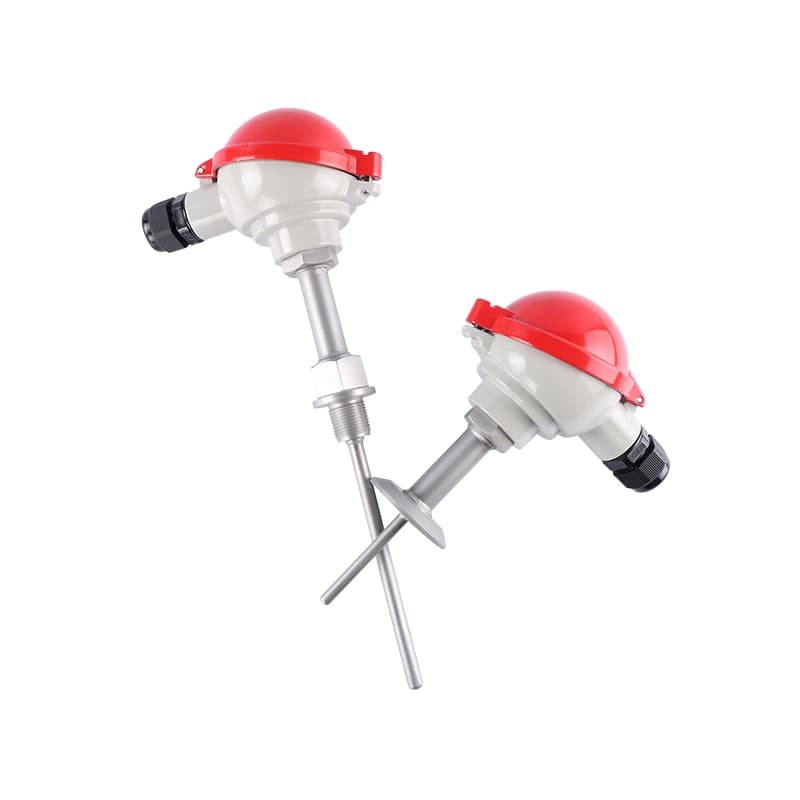

SUP-WZPK/WRNK RTD Temperature sensors with mineral insulated resistance thermometers
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
Nominal resistance value at℃Class / Measuring current / R(100℃) / R(0℃)
Pt100A / Below 2mA / 1.3851
Note/ /
SheathConductor wire / Sheath / Approx
max lengthweight
OD(mm)WT(mm) / Material / Dia(mm) / Resistance per wire / Material / (m) / (g/m)
（Ω/m）/
Φ2.00.25 / SUS316 / Φ0.25 / － / Nickel / 100 / 12
Φ3.00.47 / Φ0.51 / 0.5 / 83 / 41
Φ5.00.72 / Φ0.76 / 0.28 / 35 / 108
Φ6.00.93 / Φ1.00 / 0.16 / 20 / 165
Φ8.01.16 / Φ1.30 / 0.13 / 11.5 / 280
Φ9.01.25 / Φ1.46 / 0.07 / 21 / 370
Φ121.8 / Φ1.50 / 0.07 / 10.5 / 630
Φ3.00.38 / Φ0.30 / - / 83 / 41
Φ5.00.72 / Φ0.50 / ≤0.65 / 35 / 108
Φ6.00.93 / Φ0.72 / ≤0.35 / 20 / 165
Φ8.01.16 / Φ0.90 / ≤0.25 / 11.5 / 280
Φ9.01.25 / Φ1.00 / ≤0.14 / 21 / 370
Φ121.8 / Φ1.50 / ≤0.07 / 10.5 / 630
ClassTolerance (℃) / Class / Tolerance (℃)
Pt100A / ±（0.15 +0.002|t|） / A / ±（0.15 +0.002|t|）
( R(100℃)/R(0℃)=1.3851B / ±（0.3+0.005|t|） / B / ±（0.3+0.005|t|）
Note．/ / /
Measuring temperature rangeUnit / ℃
Sheath Diameter (mm)N / K / E / J / T
0.25—— / 500 / —— / —— / ——
0.5—— / 600 / —— / —— / ——
1.0900 / 650 / 900 / 650 / 450 / 300
2.01200 / 650 / 1200 / 650 / 450 / 300
3.01260 / 750 / 1260 / 750 / 650 / 350
5.0/ 800 / 1260 / 800 / 750 / 350
6.0/ 1000 / 900 / 1260 / 800 / 750 / 350
8.0—— / 1050 / 1000 / —— / 800 / 750 / 350
Sheath materialInconel 600/SUS310/H2300/SUS316
Manufacturer-reported specifications
Nominal resistance value at℃: Class / Measuring current / R(100℃) / R(0℃) Pt100: A / Below 2mA / 1.3851 Note: / / Sheath: Conductor wire / Sheath / Approx max length: weight OD(mm): WT(mm) / Material / Dia(mm) / Resistance per wire / Material / (m) / (g/m) （Ω/m）: / Φ2.0: 0.25 / SUS316 / Φ0.25 / － / Nickel / 100 / 12 Φ3.0: 0.47 / Φ0.51 / 0.5 / 83 / 41 Φ5.0: 0.72 / Φ0.76 / 0.28
