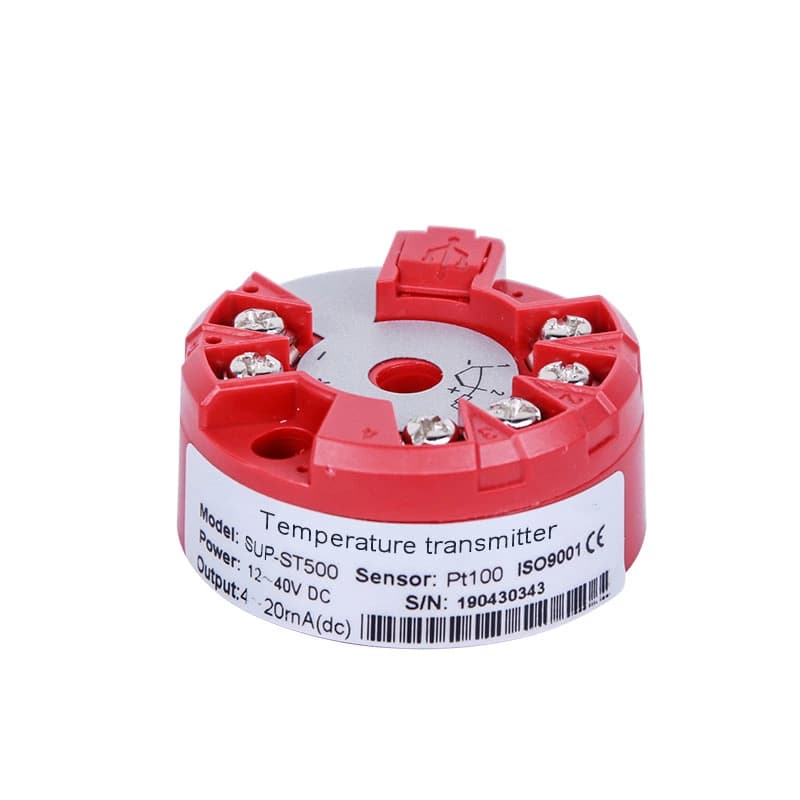

SUP-ST500 Temperature transmitter programmable

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSUPMEA

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizesTo confirm

MaterialTo confirm

ConnectionTo confirm

Instrument specifications

Input signalResistance temperature detector (RTD), thermocouple (TC), and linear resistance.

Cold-junction compensation temperature scope-20~60℃

Output signal4-20mA

Load resistanceRL≤(U-10)/0.021

Output current of upper and lower limit overflow alarmIH=21 mA, IL=3.8 mA

Power supply(12-40)VDC

Response timeReach to 90% of the final value for 1s

Used environmental temperature-40~80℃

Storage temperature-40~100℃

Vibration resistance4g/2~150Hz

Electromagnetic compatibilityConform to GB/T18268 industrial equipment application requirements(IEC 61326-1)

ModelType / Measurement scope / Minimum measurement scope / Accuracy

Resistance temperature detector (RTD)Pt100 / -200~850℃ / 20℃ / ±0.2%/±0.4℃

Cu50-50~150℃ / 20℃ / ±1.0%/±1.0℃

Thermocouple (TC)B / 400~1820℃ / 500℃ / ±0.1%/±1.5℃

E-100~1000℃ / 50℃ / ±0.1%/±0.5℃

J-100~1200℃ / 50℃ / ±0.1%/±0.5℃

K-180~1372℃ / 50℃ / ±0.1%/±0.5℃

N-180~1300℃ / 50℃ / ±0.1%/±0.5℃

R-50~1768℃ / 500℃ / ±0.1%/±1.5℃

S-50~1768℃ / 500℃ / ±0.1%/±1.5℃

T-200~400℃ / 50℃ / ±0.1%/±0.5℃

Wre3-250~2315℃ / 500℃ / ±0.1%/±1.5℃

Wre5-260~2310℃ / 500℃ / ±0.1%/±1.5℃

Manufacturer-reported specifications

Input signal: Resistance temperature detector (RTD), thermocouple (TC), and linear resistance. Cold-junction compensation temperature scope: -20~60℃ Output signal: 4-20mA Load resistance: RL≤(U-10)/0.021 Output current of upper and lower limit overflow alarm: IH=21 mA, IL=3.8 mA Power supply: (12-40)VDC Response time: Reach to 90% of the final value for 1s Used environmental temperature: -40~80℃ Storage temperature: -40~100℃ Vibration resistance: 4g/2~150Hz Electromagnetic compatibility: Conform to GB/T18268 industrial equipment application requirements(IEC 61326-1) Model: Type / Measurement scope / Minimum measurement scope / Accuracy
