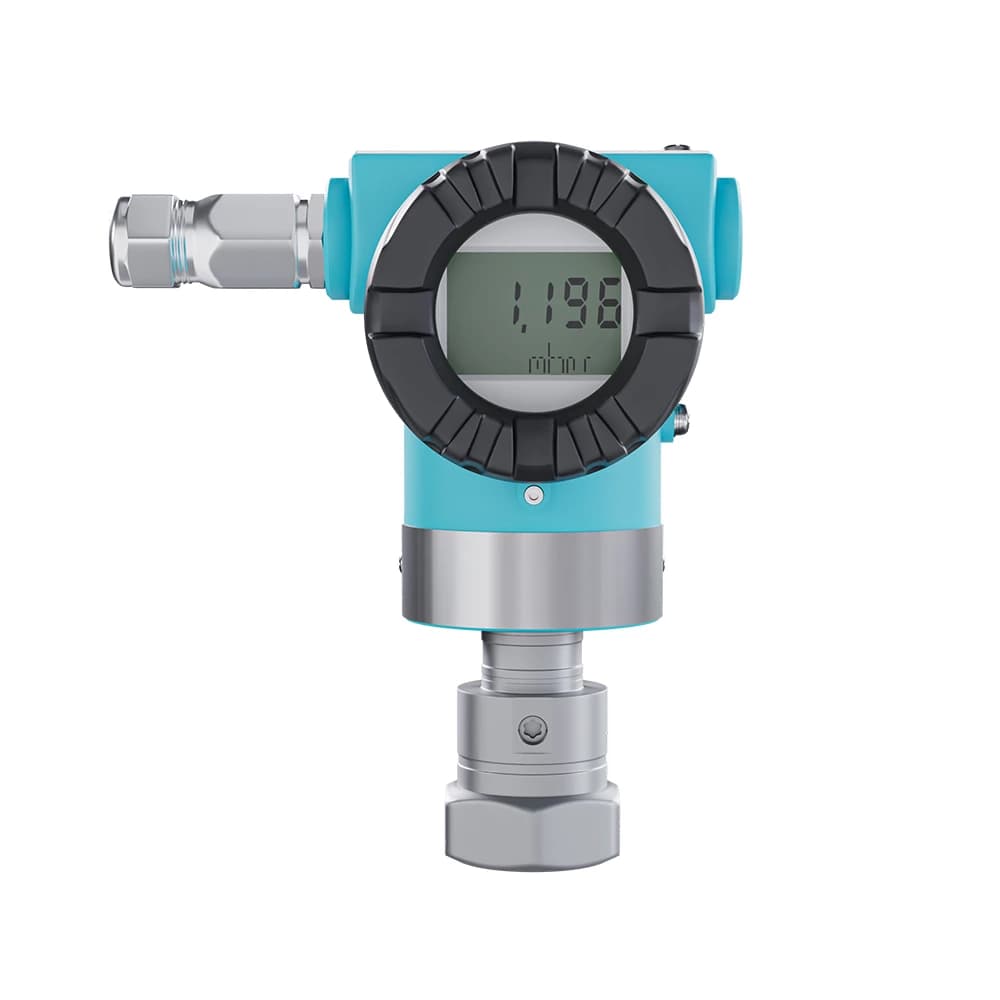

SUP-RTX2400-K Gauge Pressure Transmitter with Differential Interfaces
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
Product TypeGauge pressure transmitter with differential interfaces
Measuring Range-400 mbar to 50 bar
Minimum Span8 mbar to 500 mbar
AccuracyPremium: ±0.04% span; Standard: ±0.065% span
Long-term Stability±0.1% URL / 10 years
Response Time≤100 ms
Measuring MediaGas, liquid or vapor
Output Signal2-wire 4–20 mA / HART
Supply Voltage10.5–45 VDC; max. 28 VDC for intrinsic safety applications
Temperature RangeAmbient: -40 to +85°C; Process: -40 to +120°C
Relative Humidity0–95% RH
DampingAdjustable from 0 to 100 s
Electrical ConnectionM20×1.5 female or 1/2-14 NPT female
Process Connection1/4-18 NPT female
Local InterfaceOptional LCD display, 3-button local operation, HART communication
Wetted Materials316L stainless steel or Hastelloy C-276 diaphragm; 316L stainless steel process connection
O-ring MaterialNBR, FKM or PTFE
HousingDie-cast aluminum alloy, polyester coating
Ingress ProtectioIP65 / IP67
Filling FluidSilicone oil
WeightApprox. 3.6 kg
Manufacturer-reported specifications
Product Type: Gauge pressure transmitter with differential interfaces Measuring Range: -400 mbar to 50 bar Minimum Span: 8 mbar to 500 mbar Accuracy: Premium: ±0.04% span; Standard: ±0.065% span Long-term Stability: ±0.1% URL / 10 years Response Time: ≤100 ms Measuring Media: Gas, liquid or vapor Output Signal: 2-wire 4–20 mA / HART Supply Voltage: 10.5–45 VDC; max. 28 VDC for intrinsic safety applications Temperature Range: Ambient: -40 to +85°C; Process: -40 to +120°C Relative Humidity: 0–95% RH Damping: Adjustable
