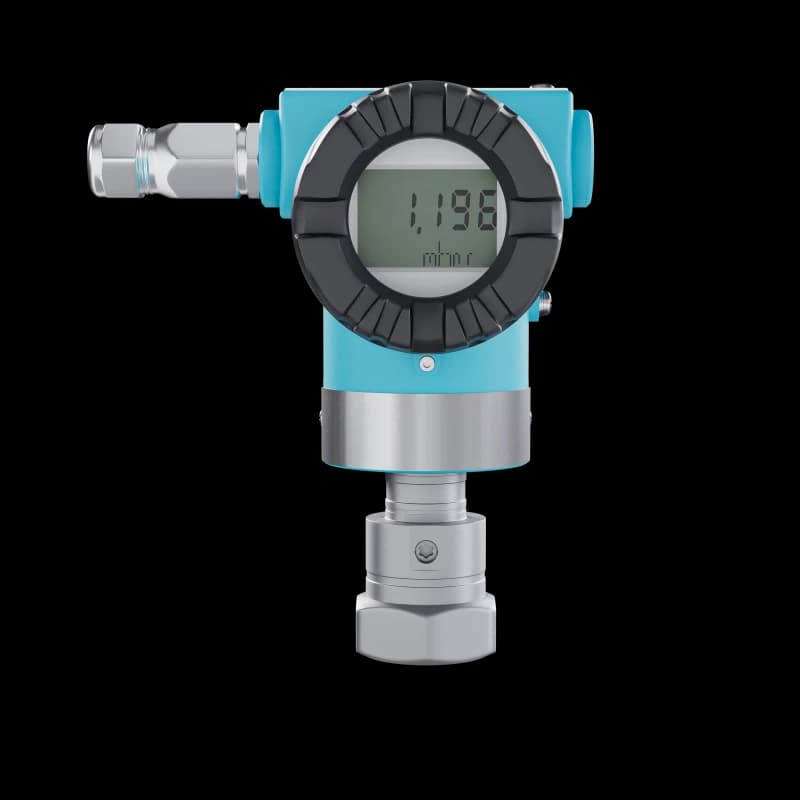

SUP RTX2400-G In-line Gauge Pressure Transmitter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
ParameterSpecification
Product TypeIn-line Gauge Pressure Transmitter
ModelSUP RTX2400-G
Pressure TypeGauge Pressure
Range CodesG4, G5, G6, G7, G8, G9
Maximum URL700 bar
Turndown RatioUp to 100:1
Premium Accuracy±0.04% of span at r ≤ 10
Standard Accuracy±0.065% of span at r ≤ 10
Premium Accuracy at 10 < r ≤ 100±(0.004 + 0.0036 × r)% of span
Standard Accuracy at 10 < r ≤ 100±(0.005 + 0.006 × r)% of span
Long-term Stability±0.1% URL / 10 years
Response Time≤100 ms to 63% in fast response mode
Measuring MediaGas, liquid or vapor
OutputTwo-wire 4–20 mA / HART® 7
Supply Voltage10.5–45 VDC
Intrinsically Safe Supply≤28 VDC
Alarm Current3.6 mA or 22.8 mA
Damping0–100 s
Inherent Response TimeApprox. 0.1 s
Compensation Temperature-40 to +80 °C
Ambient Temperature-40 to +85 °C
Process Temperature-40 to +120 °C
LCD Temperature-35 to +85 °C
Relative Humidity0–95% RH
Local DisplayOptional LCD
Local Configuration3-button operation
Electrical ConnectionM20×1.5 female or 1/2-14 NPT female
Process Connection1/2-14 NPT female; 1/2-14 NPT EN837-1 male; M20×1.5 male; G1/2 B EN837-1 male
Diaphragm MaterialStainless steel 316L / Hastelloy C276
Process Connection MaterialStainless steel 316L / Hastelloy C276
Filling FluidSilicone oil
Housing MaterialDie-cast aluminum alloy ADC12
Housing CoatingPolyester
Ingress ProtectionIP65 / IP67
Transmitter WeightApprox. 1.6 kg
Range CodeMinimum Span / Lower Range Limit / Upper Range Limit
G410 mbar / -1 bar / 2 bar
G5100 mbar / -1 bar / 10 bar
G6500 mbar / -1 bar / 50 bar
Manufacturer-reported specifications
Parameter: Specification Product Type: In-line Gauge Pressure Transmitter Model: SUP RTX2400-G Pressure Type: Gauge Pressure Range Codes: G4, G5, G6, G7, G8, G9 Maximum URL: 700 bar Turndown Ratio: Up to 100:1 Premium Accuracy: ±0.04% of span at r ≤ 10 Standard Accuracy: ±0.065% of span at r ≤ 10 Premium Accuracy at 10 < r ≤ 100: ±(0.004 + 0.0036 × r)% of span Standard Accuracy at 10 < r ≤ 100: ±(0.005 + 0.006 × r)% of span
