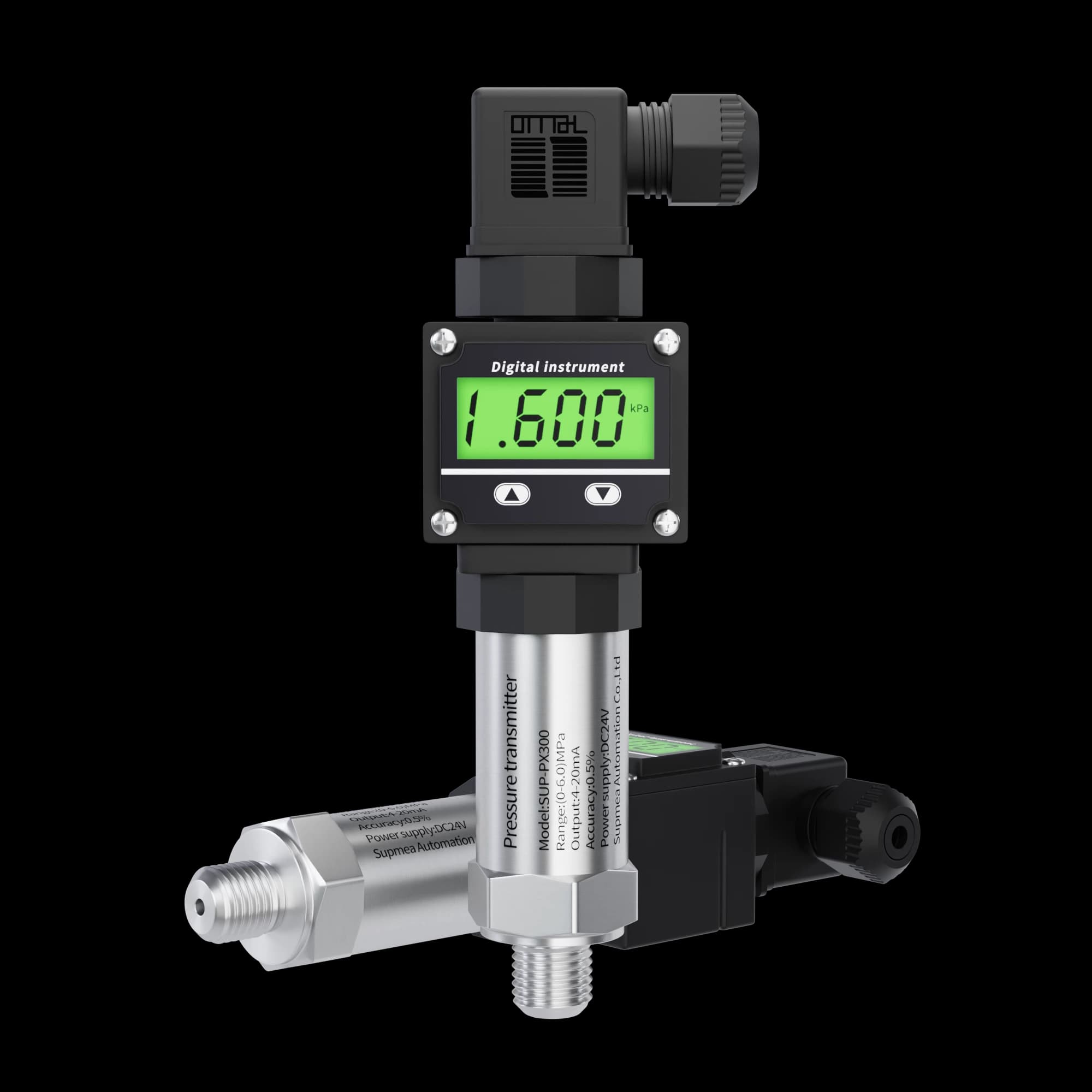

SUP-PX300 Pressure transmitter with display
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
ProductPressure transmitter
ModelSUP-PX300
Measure range-0.1…0/0.01…60Mpa
Indication resolution0.5%
Working temperature-20-85°C
Output signal4-20ma analog output
Pressure typeGauge pressure, adiabatic pressure and sealed pressure
Measure mediumLiquid; Gas; Oil etc
Pressure overload0.035...10MPa（150%FS）10...60MPa（125%FS）
Power10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)
Manufacturer-reported specifications
Product: Pressure transmitter Model: SUP-PX300 Measure range: -0.1…0/0.01…60Mpa Indication resolution: 0.5% Working temperature: -20-85°C Output signal: 4-20ma analog output Pressure type: Gauge pressure, adiabatic pressure and sealed pressure Measure medium: Liquid; Gas; Oil etc Pressure overload: 0.035...10MPa（150%FS）10...60MPa（125%FS） Power: 10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)
