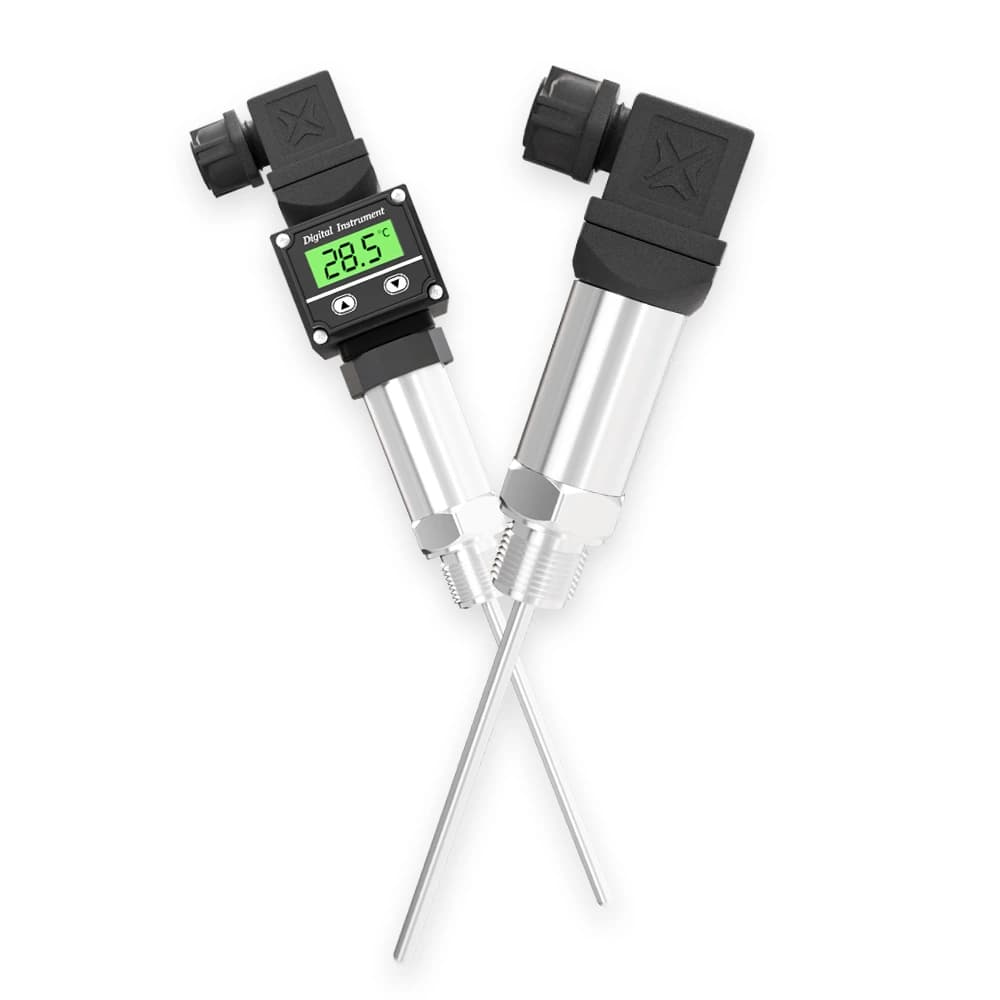

SUP-PX202/P202 Hirschmann Temperature Sensor

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSUPMEA

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizesTo confirm

MaterialTo confirm

ConnectionTo confirm

Instrument specifications

Measured variablesTemperature

Temperature sensorPt100

Measuring range(-50～200)℃

Accuracy0.5%F.S

Response timeT90≤60s

Current output(4～20)mA，load capacity =(U-9V)/0.02A U: supply voltage, unit: V

Communication outputRS485，Modbus communication protocol.

Temperature outputPt100

Power supply(4～20)mA output: (9~30)VDC RS485 output without display: (5~30)VDC RS485 output with display: (5~28)VDC

Power consumption(4～20)mA output: 0.7W@24VDC RS485 output without display: 0.2W@24VDC RS485 output with display:0.4W@24VDC

Cable entriesDIN43650-A Hirschmann connector ; GX12 aviation plug

Insulation resistance20MΩ，250VDC

Dielectric strength500VAC

Ingress protectionIP65 ( Display part: IP50 )

Process pressure4MPa

Ambient temperature(-20~70)℃

Storage temperature(-20~70)℃

Manufacturer-reported specifications

Measured variables: Temperature Temperature sensor: Pt100 Measuring range: (-50～200)℃ Accuracy: 0.5%F.S Response time: T90≤60s Current output: (4～20)mA，load capacity =(U-9V)/0.02A U: supply voltage, unit: V Communication output: RS485，Modbus communication protocol. Temperature output: Pt100 Power supply: (4～20)mA output: (9~30)VDC RS485 output without display: (5~30)VDC RS485 output with display: (5~28)VDC Power consumption: (4～20)mA output: 0.7W@24VDC RS485 output without display: 0.2W@24VDC RS485 output with display:0.4W@24VDC Cable entries: DIN43650-A Hirschmann connector ; GX12 aviation plug Insulation resistance: 20MΩ，250VDC Dielectric strength: 500VAC Ingress protection: IP65 (
