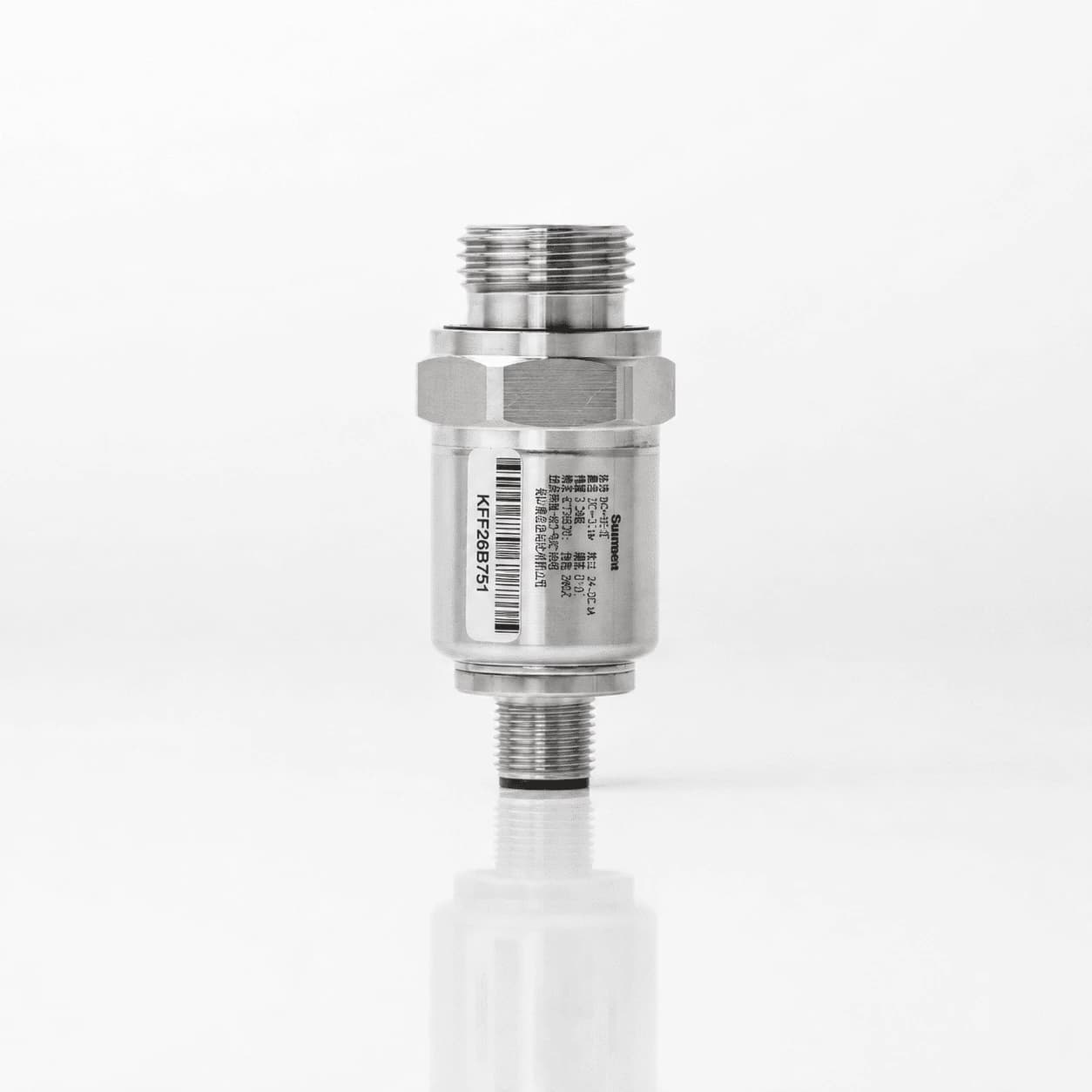

SUP-PE100 Compact Pressure Transmitter for Data Center Cooling
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
ParameterSpecification
Pressure TypeGauge pressure, absolute pressure, or sealed pressure
Measuring Range−100 kPa to 60 MPa (approximately −14.5 to 8,702 psi)
AccuracyClass 0.2 / 0.25 / 0.5
Output Signal4–20 mA; 1–5 V; 0–5 V; 0–10 V; 0.5–4.5 V
CommunicationRS485, Modbus
Power Supply10–32 VDC for 4–20 mA; 8–32 VDC for 0–5 V and 1–5 V; 12–32 VDC for 0–10 V; 4.75–5.25 VDC for 0.5–4.5 V
Response TimeT90 ≤10 ms for current and voltage outputs; T90 ≤100 ms for RS485
Long-Term Stability±0.2% FS/year
Overload Pressure150% FS for 0.035–10 MPa ranges; 125% FS for 10–60 MPa ranges
Burst Pressure200% FS
Medium Temperature−4 to 185°F (−20 to 85°C)
Wetted Diaphragm316L stainless steel
Process Connection Material304 or 316L stainless steel
Seal MaterialEPDM; FKM optional
Electrical ConnectionsHirschmann connector, M12 aviation connector, direct lead, or Packard connector
Protection RatingIP65
Manufacturer-reported specifications
Parameter: Specification Pressure Type: Gauge pressure, absolute pressure, or sealed pressure Measuring Range: −100 kPa to 60 MPa (approximately −14.5 to 8,702 psi) Accuracy: Class 0.2 / 0.25 / 0.5 Output Signal: 4–20 mA; 1–5 V; 0–5 V; 0–10 V; 0.5–4.5 V Communication: RS485, Modbus Power Supply: 10–32 VDC for 4–20 mA; 8–32 VDC for 0–5 V and 1–5 V; 12–32 VDC for 0–10 V; 4.75–5.25 VDC for 0.5–4.5 V Response Time: T90 ≤10 ms for current and voltage outputs;
