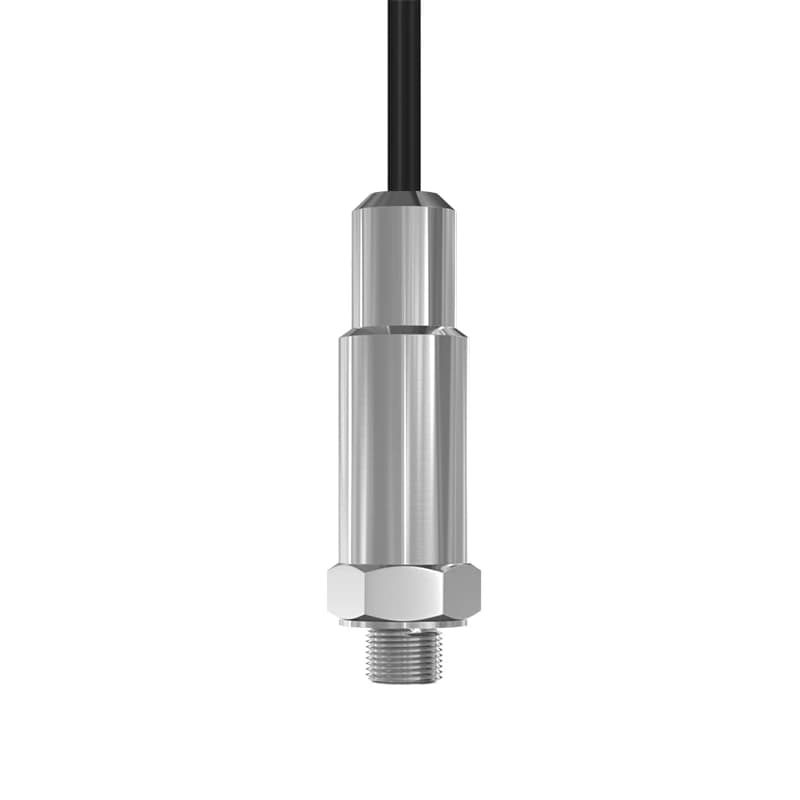

SUP-PD500 Pressure and temperature transmitter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
ProductPressure & Temperature Transmitter
ModelSUP-PD500
Measure range0～600 kPa… 60MPa
Pressure typeGauge pressure
AccuracyPressure: 0.5% F.S; Temp: 2.5% F.S
Output signal4...20mA; 1...5V; 0...10V; 0...5V; RS485
Temperature compensation-10...60 ℃
Medium temperature-30...65 ℃
Overload pressure150%FS
Long-term stability± 0.2%FS/year
Power supply12-30V
Ingress protectionIP68
Manufacturer-reported specifications
Product: Pressure & Temperature Transmitter Model: SUP-PD500 Measure range: 0～600 kPa… 60MPa : 0～+80 ℃ Pressure type: Gauge pressure Accuracy: Pressure: 0.5% F.S; Temp: 2.5% F.S Output signal: 4...20mA; 1...5V; 0...10V; 0...5V; RS485 Temperature compensation: -10...60 ℃ Medium temperature: -30...65 ℃ Overload pressure: 150%FS Long-term stability: ± 0.2%FS/year Power supply: 12-30V Ingress protection: IP68
