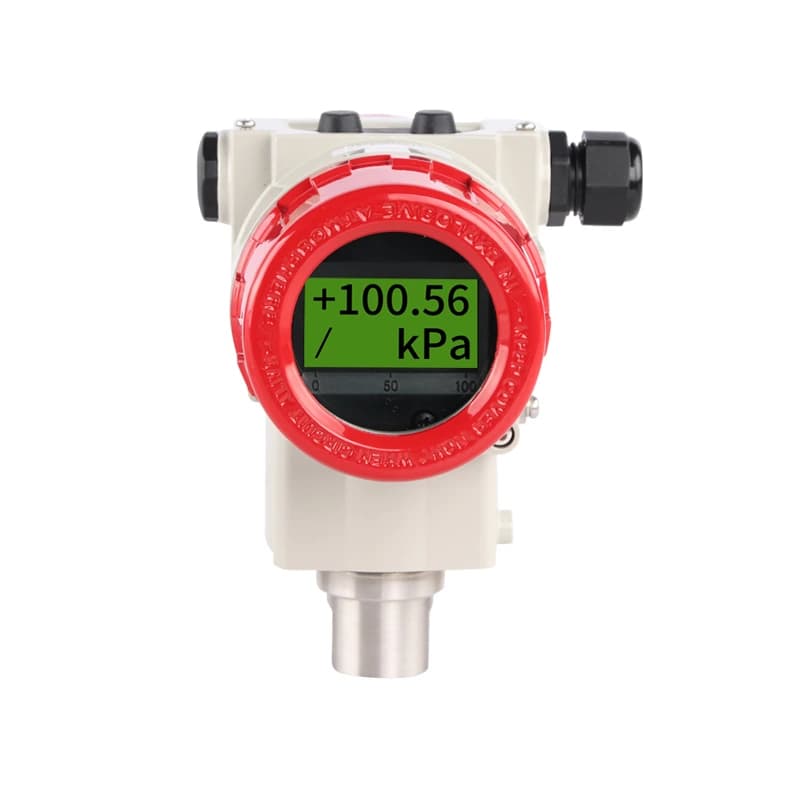

SUP-P3000 Pressure transmitter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
ProductPressure transmitter
ModelSUP-3000
Measure range0～0.6kPa...60MPa (Gauge pressure); 0～2kPa... 3MPa (Adiabatic pressure)
Indication resolution±0.075%FS; ±0.1%FS
Ambient temperature-40 ~ 85 ℃
Medium temperature-40~100℃
Storage temperature-50~85℃
Output signal4-20mA analog output / with HART communication
Diaphragm material316L stainless steel Hastelloy C (custom)
Process connection316L stainless steel
Fill oilSilicone oil
Power supply24VDC
Long-term stability±0.1%FS/3 years
Inpress protectionIP67
Manufacturer-reported specifications
Product: Pressure transmitter Model: SUP-3000 Measure range: 0～0.6kPa...60MPa (Gauge pressure); 0～2kPa... 3MPa (Adiabatic pressure) Indication resolution: ±0.075%FS; ±0.1%FS Ambient temperature: -40 ~ 85 ℃ Medium temperature: -40~100℃ Storage temperature: -50~85℃ Output signal: 4-20mA analog output / with HART communication Diaphragm material: 316L stainless steel Hastelloy C (custom) Process connection: 316L stainless steel Fill oil: Silicone oil Power supply: 24VDC Long-term stability: ±0.1%FS/3 years Inpress protection: IP67
