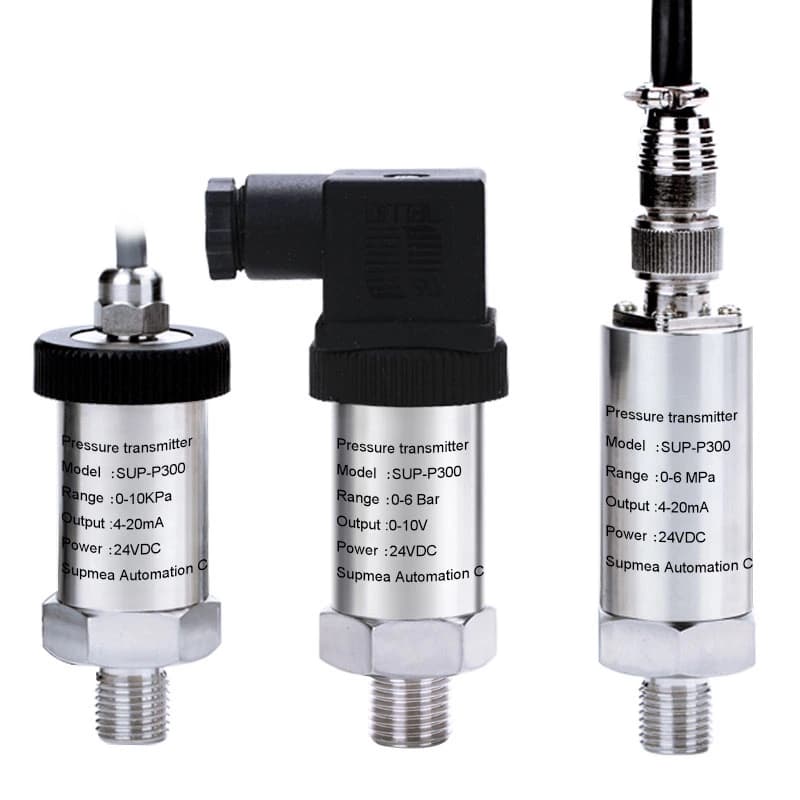

SUP-P300 Pressure transmitter with compact size for universal use

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSUPMEA

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizesTo confirm

MaterialTo confirm

ConnectionTo confirm

Instrument specifications

ProductPressure transmitter

ModelSUP-P300

Measure range-0.1MPa…0~10kPa…60Mpa

Pressure typeGauge pressure, Adiabatic pressure, Sealing pressure

Accuracy0.5% F.S; 0.2%F.S,0.25%F.S, optional

Output signal4~20mA; 1~5V; 0~10V; 0~5V; RS485

Temperature compensation-10~70 ℃

Working temperature-20~85 ℃

Medium temperature-30~105 ℃

Storage temperature-40~125 ℃

Overload pressure0.035~10MPa（150%FS）, 10~60MPa（125%FS）

Long-term stability± 0.2%FS/year

Power supply10~32V (4~20mA); 12~32V (0~10V); 8~32V (RS485, 0~5V, 1~5V)

Ingress protectionIP65,IP68(optional)

Manufacturer-reported specifications

Product: Pressure transmitter Model: SUP-P300 Measure range: -0.1MPa…0~10kPa…60Mpa Pressure type: Gauge pressure, Adiabatic pressure, Sealing pressure Accuracy: 0.5% F.S; 0.2%F.S,0.25%F.S, optional Output signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485 Temperature compensation: -10~70 ℃ Working temperature: -20~85 ℃ Medium temperature: -30~105 ℃ Storage temperature: -40~125 ℃ Overload pressure: 0.035~10MPa（150%FS）, 10~60MPa（125%FS） Long-term stability: ± 0.2%FS/year Power supply: 10~32V (4~20mA); 12~32V (0~10V); 8~32V (RS485, 0~5V, 1~5V) Ingress protection: IP65,IP68(optional)
