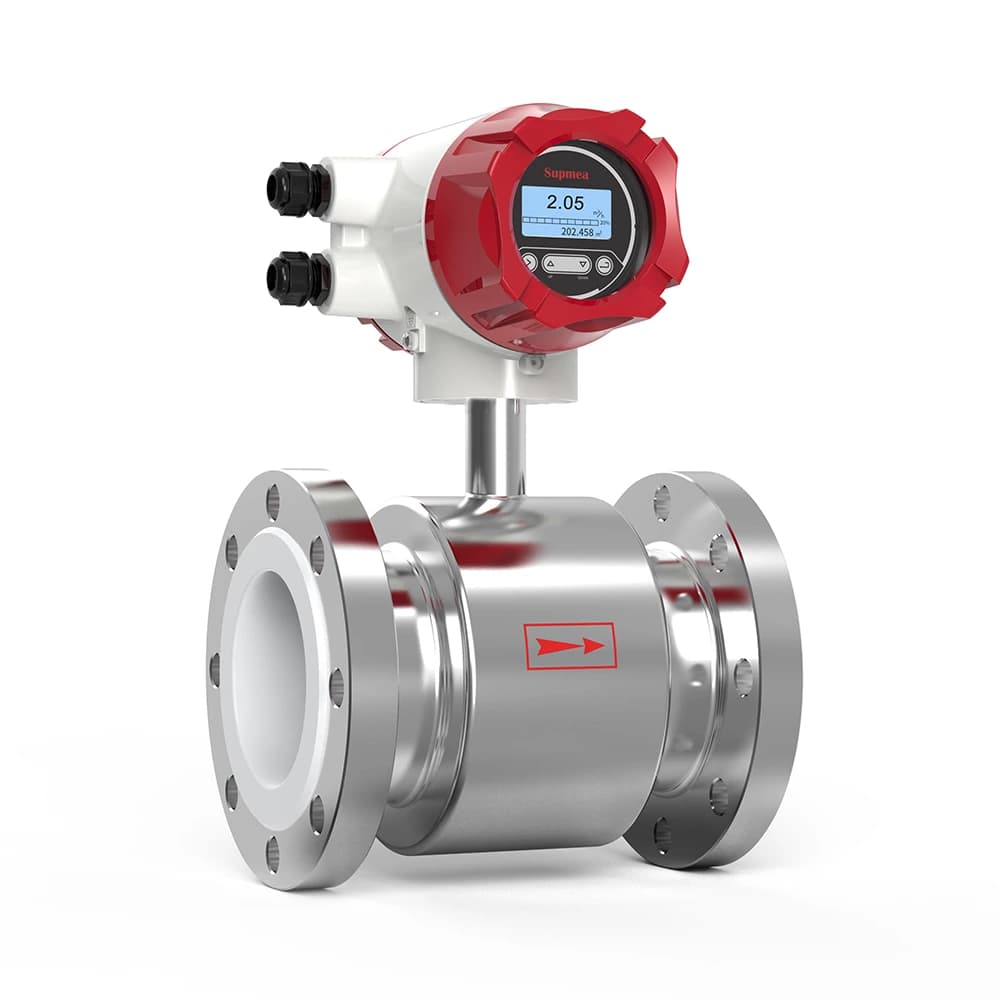

SUP-LDG Stainless steel body electromagnetic flowmeter

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSUPMEA

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizes2″ / 3″ / 4″ / 6″

MaterialTo confirm

ConnectionTo confirm

Reported size range; individual configurations require confirmation

Instrument specifications

ProductElectromagnetic flow meter

ModelSUP-LDG

Diameter nominalDN15~DN1200

Nominal pressure0.6~4.0MPa

Accuracy±0.5%，±2mm/s(flowrate<1m/s)

Liner materialPFA,F46,Neoprene,PTFE,FEP

Electrode materialStainless steel SUS316L, Hastelloy C, Titanium,

Medium temperatureIntegral type: -10℃~80℃

Ambient Temperature-10℃~60℃

Electrical conductivityWater 20μS/cm other medium 5μS/cm

Structure typeTegral type, split type

Ingress protectionIP65

Product standardJB/T 9248-1999 Electormagnetic Flowmeter

Manufacturer-reported specifications

Product: Electromagnetic flow meter Model: SUP-LDG Diameter nominal: DN15~DN1200 Nominal pressure: 0.6~4.0MPa Accuracy: ±0.5%，±2mm/s(flowrate<1m/s) Liner material: PFA,F46,Neoprene,PTFE,FEP Electrode material: Stainless steel SUS316L, Hastelloy C, Titanium, : Tantalum Platinum-iridium Medium temperature: Integral type: -10℃~80℃ : Split type: -25℃~180℃ Ambient Temperature: -10℃~60℃ Electrical conductivity: Water 20μS/cm other medium 5μS/cm Structure type: Tegral type, split type Ingress protection: IP65 Product standard: JB/T 9248-1999 Electormagnetic Flowmeter
