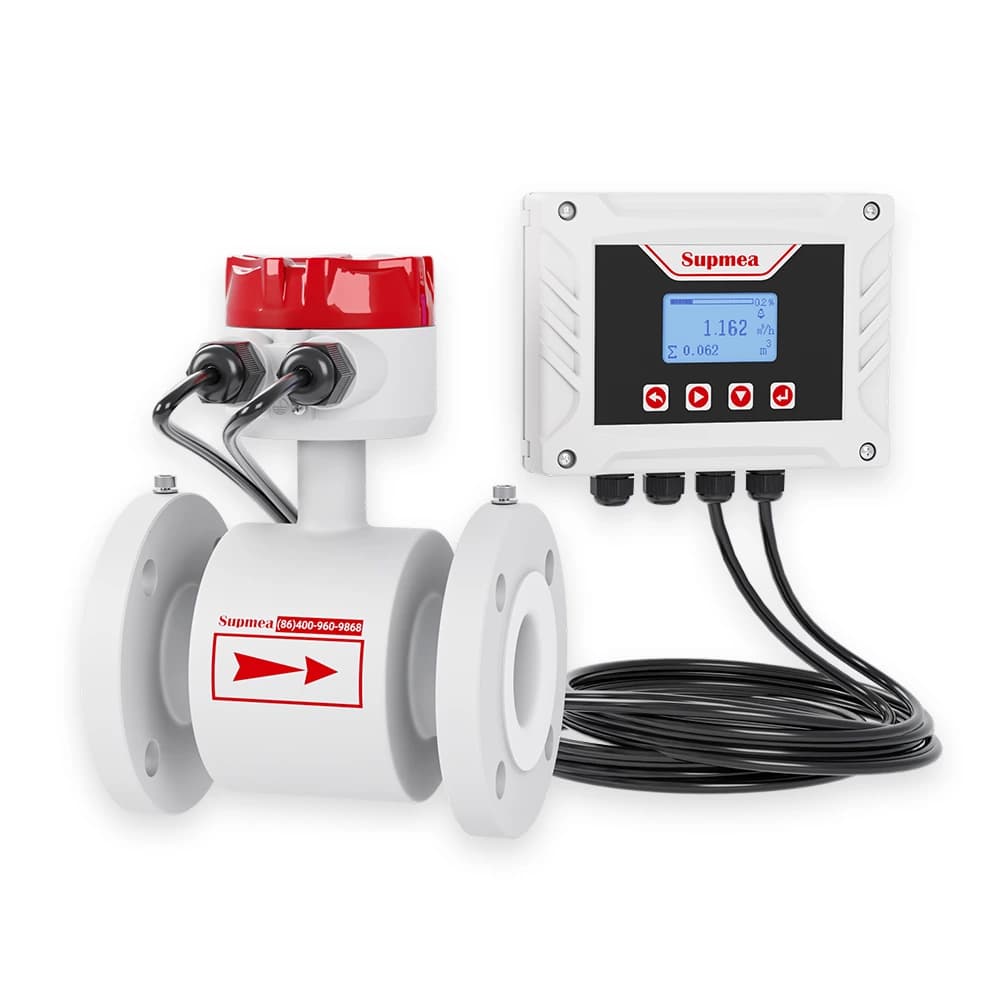

SUP-LDG Remote type electromagnetic flowmeter

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSUPMEA

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizes2″ / 3″ / 4″ / 6″

MaterialTo confirm

ConnectionTo confirm

Reported size range; individual configurations require confirmation

Instrument specifications

ProductElectromagnetic flowmeter

ModelSUP-LDG

Diameter nominalDN15~DN1200

Nominal pressureDN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized

Accuracy±0.5% F.S. (Flow speed > 1m/s); ±0.5% F. S. ±2mm/s (Flow speed <1m/s)

Liner materialNeoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA

Electrode material316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt

Medium temperatureNeoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃

Power supply85-245VAC，50/60Hz, 22VDC-26VDC

Electrical conductivityWater min.20μS/cm;other medium min.5μS/cm

Structure typeCompact type, Remote type

Ingress protectionIP65 for converter, IP68 for sensor

Product standardJB/T 9248-1999 Electromagnetic Flow Meter

Manufacturer-reported specifications

Product: Electromagnetic flowmeter Model: SUP-LDG Diameter nominal: DN15~DN1200 Nominal pressure: DN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized Accuracy: ±0.5% F.S. (Flow speed > 1m/s); ±0.5% F. S. ±2mm/s (Flow speed <1m/s) Liner material: Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA Electrode material: 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt Medium temperature: Neoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃ Power supply: 85-245VAC，50/60Hz, 22VDC-26VDC
