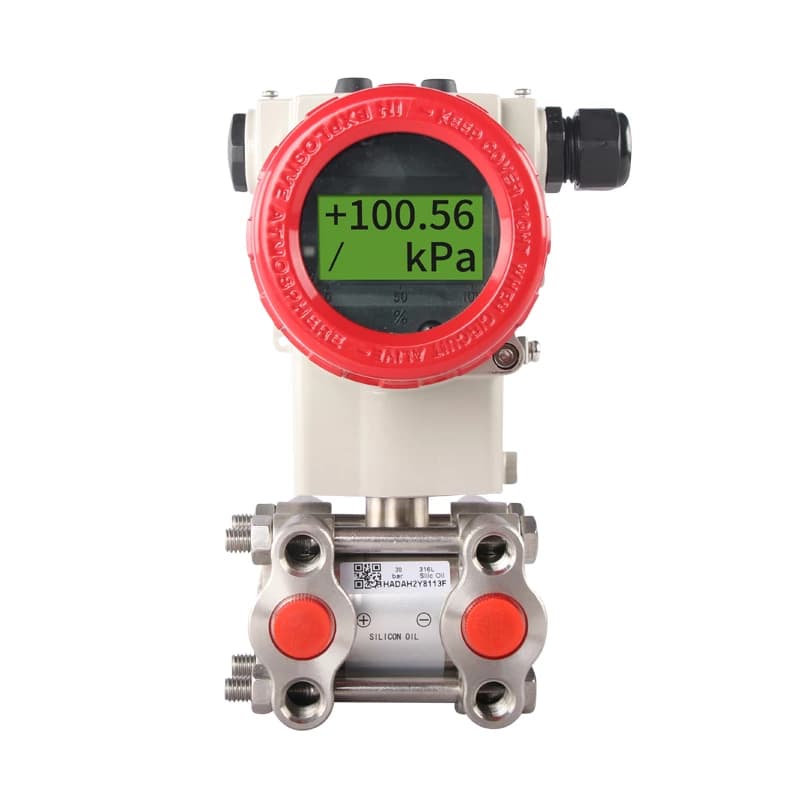

SUP-2051 Differential Pressure transmitter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerSUPMEA
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
ProductDifferential Pressure transmitter
ModelSUP-2051
Measure range-100kPa···0~0.1kPa···3MPa
Indication resolution±0.075%; ±0.01%FS
Ambient temperature-40 ~ 85 ℃
Medium temperature-40~120℃
Storage temperature-40~85℃
Output signal4-20mA analog output / with HART communication
Shell protectionIP67
Diaphragm materialStainless steel 316L, Hastelloy C, supports other custom
Product shellAluminum alloy, the appearance of epoxy coating
Weight3.3Kg
Manufacturer-reported specifications
Product: Differential Pressure transmitter Model: SUP-2051 Measure range: -100kPa···0~0.1kPa···3MPa Indication resolution: ±0.075%; ±0.01%FS Ambient temperature: -40 ~ 85 ℃ Medium temperature: -40~120℃ Storage temperature: -40~85℃ Output signal: 4-20mA analog output / with HART communication Shell protection: IP67 Diaphragm material: Stainless steel 316L, Hastelloy C, supports other custom Product shell: Aluminum alloy, the appearance of epoxy coating Weight: 3.3Kg
