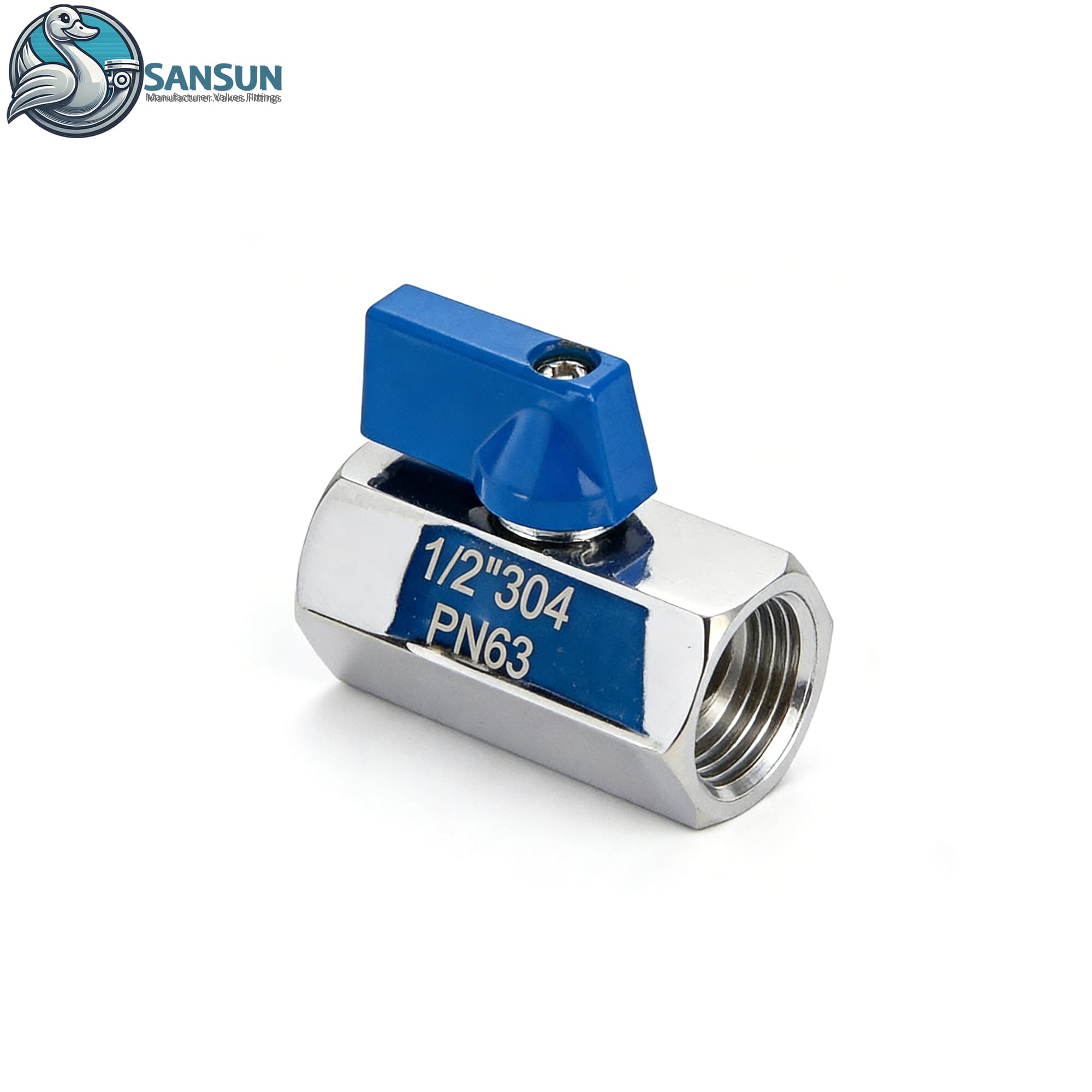

Stainless Steel Female Thread Mini Ball Valve AISI304 AISI316L For AI Data Center Liquid Cooling CDU Pipeline SANSUN

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSANSUN

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizesTo confirm

MaterialSS304 SS316L

ConnectionBSPP, BSPT,NPT

Manufacturer-reported specifications

Size: 1/8” 1/4" 1/2" 3/8" 1" 3/4" Material: SS304 SS316L Availability: : Quantity: : : Size: 1/8"-1" Valve Body Material: AISI304/AISI316L ,1.4404/1.4301 (Forged) Valve Disc Material: AISI304/AISI316L ,1.4404/1.4301 (Forged) Seal Material: PTFE Surface Finishing: Ra < 0.4-0.8 µm (32 µin) Max Working Pressure: 145psi (10bar) Helium Leak Test: <1 × 10⁻⁹ mbar・l/s Cleanliness: Passivation treatment, Conforms to ASTM A380 standard Availably standard: DIN/3A/SMS Connection type: BSPP, BSPT,NPT Certification: US 3-A, FDA, CE PED/2014/68/EC, Certification Application scope: Compact stainless steel female
