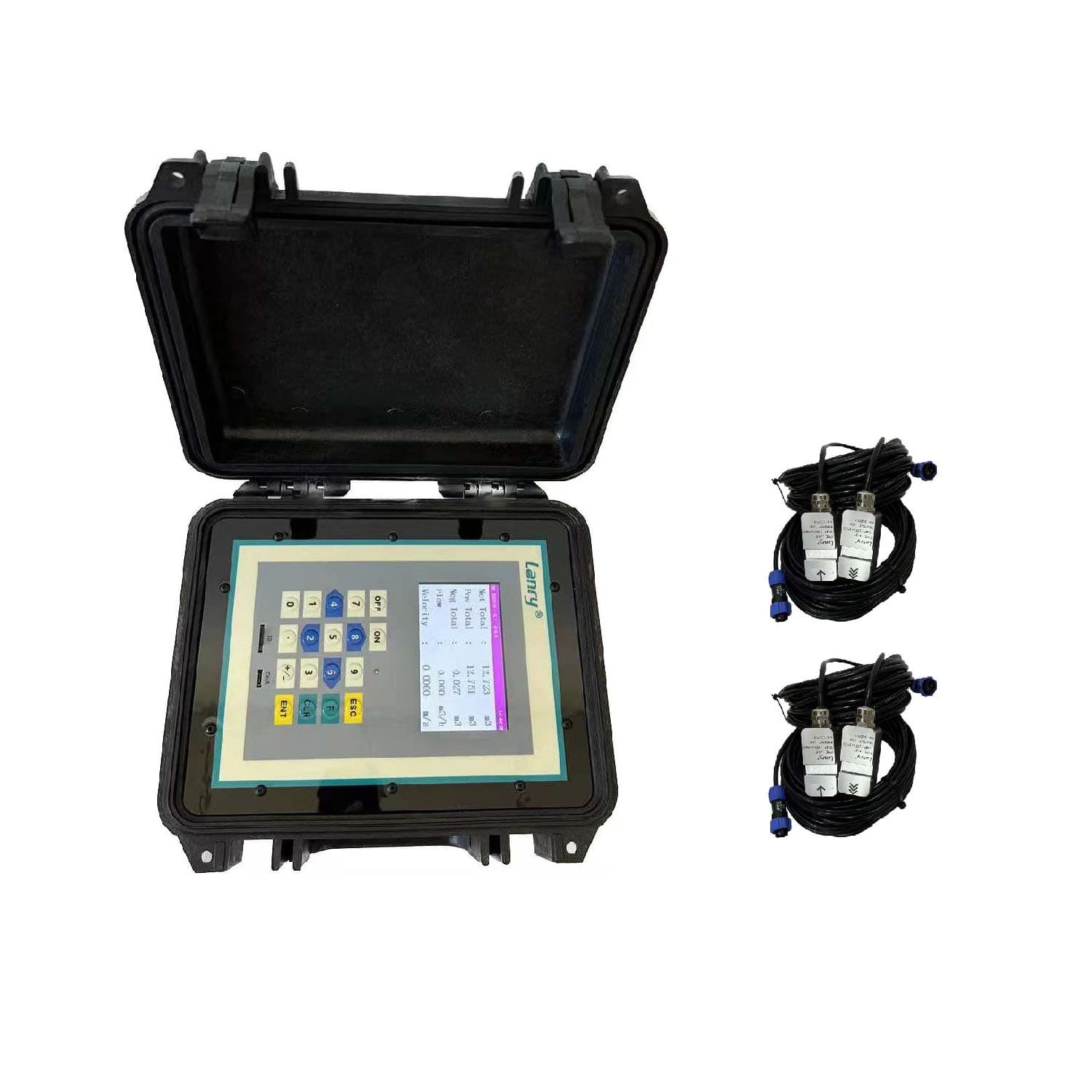

Portable Dual Channels Clamp On Ultrasonic Flowmeter TF1100-DP

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerLanry Instruments

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizes2″ / 3″ / 4″ / 6″

MaterialTo confirm

ConnectionTo confirm

Reported size range; individual configurations require confirmation

Instrument specifications

Measurement principleUltrasonic transit-time difference correlation principle

Flow velocity range0.01 to 15 m/s, bi-directional

Resolution0.1mm/s

Repeatability0.15% of reading

Accuracy± 0.5%

Response time0.5s

Sensitivity0.001m/s

Damping of displayed value0-99s(selectable by user)

Liquid Types SupportedBoth clean and somewhat dirty liquids with turbidity <10000 ppm

Power SupplyAC: 85-265V Up to 50 hours with fully charged internal batteries

Enclosure typePortable

Degree of protectionIP66

Operating temperature-20℃ to +60℃

Housing materialABS

Display4.3 inches LCD 5 lines color display, 16 keys

UnitsUser Configured (English and Metric)

RateRate and Velocity Display

Totalizedgallons, ft³, barrels, lbs, liters, m³,kg

Thermal energyunit GJ，KWh can be optional

Communication4~20mA,OCT,Relay, RS485 (Modbus),Data Logged,GPRS/GSM, NB-IoT

SecurityKeypad lockout, system lockout

Size270X215X175mm

Weight3kg

Degree of protectionIP65 according to EN60529.(IP67 or IP68 Upon request)

Suited Liquid Temperature-35℃~200℃

Pipe diameter range20-50mm for type B, 40-5000mm for type A

Transducer SizeType B 40(h)*24(w)*22(d)mm

Material of transducerAluminum + Peek

Cable LengthStd:5m

Temperature SensorPt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%

TF1100-DPPortable Dual Channels Clamp On Transit Time Ultrasonic Flowmeter

Manufacturer-reported specifications

Measurement principle: Ultrasonic transit-time difference correlation principle Flow velocity range: 0.01 to 15 m/s, bi-directional Resolution: 0.1mm/s Repeatability: 0.15% of reading Accuracy: ± 0.5% Response time: 0.5s Sensitivity: 0.001m/s Damping of displayed value: 0-99s(selectable by user) Liquid Types Supported: Both clean and somewhat dirty liquids with turbidity <10000 ppm Power Supply: AC: 85-265V Up to 50 hours with fully charged internal batteries Enclosure type: Portable Degree of protection: IP66 Operating temperature: -20℃ to +60℃ Housing material: ABS Display: 4.3 inches
