Instrument specifications
Display4-line English LCD display,display the data of instantaneous flow,cumulative flow, heat (cold), the temperature of inlet and outlet water.
Current Output4-20mA (can set flow or energy)
Pulse OutputCan choose full frequency or pulse equivalent output, the maximum frequency value of output is 5kHz.
CommunicationRS485(MODBUS or BACNET)
Power Supply220VAC, 24VDC, 100-240VAC
Temperature-20℃~60℃
Humidity5%-95%
Protection LevelIP65 (Sensor can be IP67, IP68)
StructureIntegrated or split

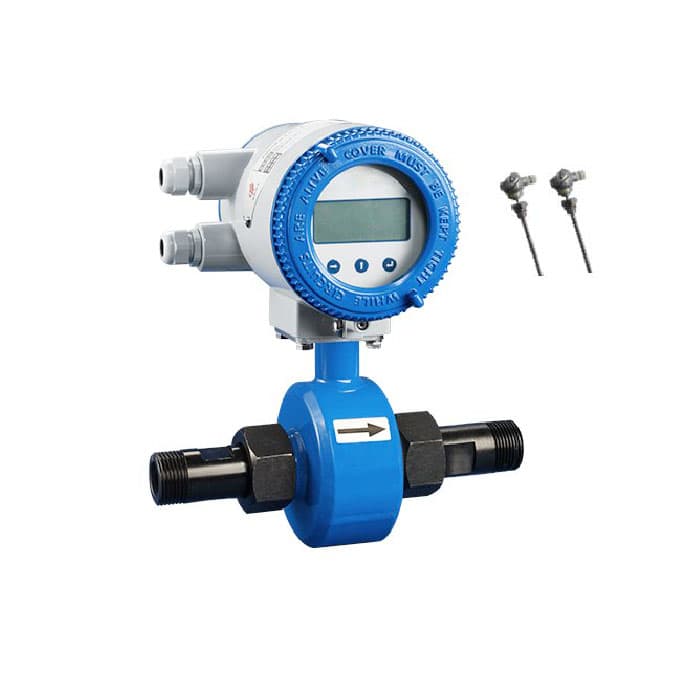

DimensionReference dimension of MAG-11 Converter
DiameterDN10 - DN40
Electrode MaterialSS316L, Hastelloy Alloy C
Lining MaterialFEP, PFA
Temperature0 ~ 180℃
Protection LevelIP65, IP67, IP68
ConnectionThread-type
Pressure1.6Mpa (standard) ; 1.0Mpa (optional)
Temperature sensorPT1000
DiameterD / L / L1 / L2 / D1 / L3 / D3
DN10G 3/4 B / 110 / 50 / 15 / R 1/4 / 28 / 13.5
DN15R 1/2 / 30 / 20.4
DN20G 1B / 123 / 58 / R 3/4 / 33 / 26.2
DN25G 1 1/4B / 128 / 60 / 18 / R 1 / 35 / 33.2
DN32G 1 3/4B / 133 / 68 / 20 / R 1 1/4 / 38 / 41.7
Pipe sizeConnection / Measure range
Qp (m3/h)Qi (m3/h)
FEP/PUPTFE
DN10Thread / 2.5 / 0.06 /
DN156 / 0.15 / 0.3
DN2010 / 0.25 / 0.5
DN2516 / 0.4/0.8 / 0.8
DN3225 / 0.6 / 1.2
DN4040 / 1 / 2
MaterialCode / Performance of Corrosion Resistance
316LV / Used in industrial water,domestic water,sewage,neutral solution and the weak acid such as carbonic acid and acetic acid.
Hastelloy Alloy CHc / Oxidation resistance acid,such as nitric acid ,mixed acid,complex acid mixed with sulfuric acid. Have good corrosion resistance to seawater,alkali solution and chloride solution. Inapplicable to:hydrochloric acid and Hydrofluoric acid
Hastelloy Alloy BHb / Has good corrosion resistance to non-oxidative acid,alkali,salt. Inapplicable to: nitric acid.
TiTi / Have good corrosion resistance to sea water,chloride,hypochlorite and various hydroxides. Inapplicable to: reducing acids like hydrochloric acid,sulfuric acid,hydrofluoric acid.
TaTa / Almost have the corrosion resistance to all chemical media,generally used for hydrochloric acid and sulfuric acid. Inapplicable to:hydrofluoric acid,alkali and fuming sulfuric acid.
Tungsten CarbideW / Have good wear resistance,used for the wearing media such as mud and paper pulp, but with poor corrosion resistance.
