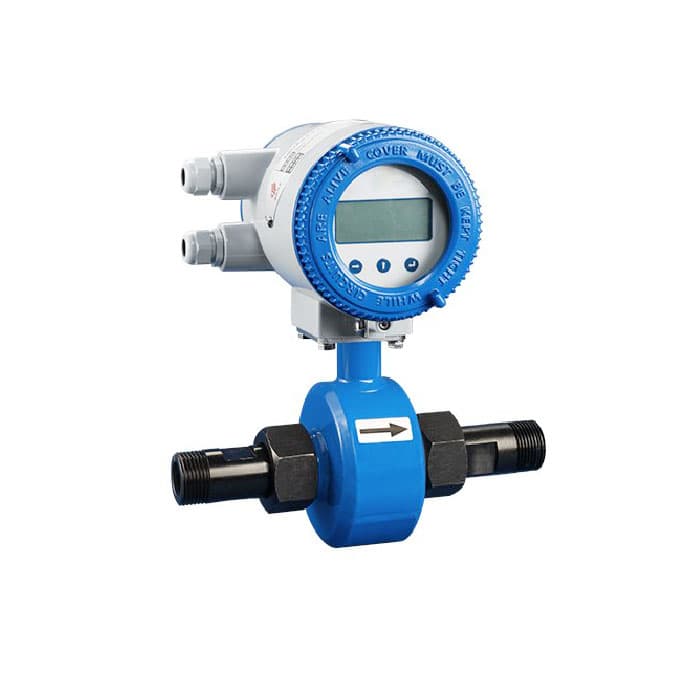

MAG-11 Electromagnetic Flow Meter Thread Connection
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerLanry Instruments
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialCode / Performance of Corrosion Resistance
ConnectionThread-type
Reported size range; individual configurations require confirmation
Instrument specifications
Display4-line English LCD display,display the data of instantaneous flow,cumulative flow, heat (cold), the temperature of inlet and outlet water.
Current Output4-20mA (can set flow or energy)
Pulse OutputCan choose full frequency or pulse equivalent output, the maximum frequency value of output is 5kHz.
CommunicationRS485(MODBUS or BACNET), Data logger, Bluetooth
Power Supply220VAC, 24VDC, 100-240VAC
Temperature-20 ℃ ~ 60 ℃
Humidity5% ~ 95%
ProtectionIP65 (converter); IP67, IP68 (sensor)
StructureCompact or Remote
DiameterDN10 - DN40
Electrode MaterialSS316L, Hastelloy Alloy C
Lining MaterialFEP, PFA
Temperature0 ~ 180℃
Protection LevelIP65, IP67, IP68
ConnectionThread-type
Pressure1.0Mpa
Temperature sensorPT1000（optional）
DiameterD / L / L1 / L2 / D1 / L3 / D3
DN10G 3/4 B / 110 / 50 / 15 / R 1/4 / 28 / 13.5
DN15R 1/2 / 30 / 20.4
DN20G 1B / 123 / 58 / R 3/4 / 33 / 26.2
DN25G 1 1/4B / 128 / 60 / 18 / R 1 / 35 / 33.2
DN32G 1 3/4B / 133 / 68 / 20 / R 1 1/4 / 38 / 41.7
MaterialCode / Performance of Corrosion Resistance
316LV / Used in industrial water,domestic water,sewage,neutral solution and the weak acid such as carbonic acid and acetic acid.
Hastelloy Alloy CHc / Oxidation resistance acid,such as nitric acid ,mixed acid,complex acid mixed with sulfuric acid. Have good corrosion resistance to seawater,alkali solution and chloride solution. Inapplicable to:hydrochloric acid and Hydrofluoric acid
Hastelloy Alloy BHb / Has good corrosion resistance to non-oxidative acid,alkali,salt. Inapplicable to: nitric acid.
TiTi / Have good corrosion resistance to sea water,chloride,hypochlorite and various hydroxides. Inapplicable to: reducing acids like hydrochloric acid,sulfuric acid,hydrofluoric acid.
TaTa / Almost have the corrosion resistance to all chemical media,generally used for hydrochloric acid and sulfuric acid. Inapplicable to:hydrofluoric acid,alkali and fuming sulfuric acid.
Tungsten CarbideW / Have good wear resistance,used for the wearing media such as mud and paper pulp, but with poor corrosion resistance.
Platinum-iridium AlloyPt / Besides aqua acid and ammonium salt,almost have the corrosion resistance to all acid,alkali and salt solution.
MaterialCode / Performance of Corrosion Resistance
316LV / Used in industrial water,domestic water,sewage,neutral solution and the weak acid such as carbonic acid and acetic acid.
Hastelloy Alloy CHc / Oxidation resistance acid,such as nitric acid ,mixed acid,complex acid mixed with sulfuric acid. Have good corrosion resistance to seawater,alkali solution and chloride solution. Inapplicable to:hydrochloric acid and Hydrofluoric acid
Hastelloy Alloy BHb / Has good corrosion resistance to non-oxidative acid,alkali,salt. Inapplicable to: nitric acid.
TiTi / Have good corrosion resistance to sea water,chloride,hypochlorite and various hydroxides. Inapplicable to: reducing acids like hydrochloric acid,sulfuric acid,hydrofluoric acid.
TaTa / Almost have the corrosion resistance to all chemical media,generally used for hydrochloric acid and sulfuric acid. Inapplicable to:hydrofluoric acid,alkali and fuming sulfuric acid.
Tungsten CarbideW / Have good wear resistance,used for the wearing media such as mud and paper pulp, but with poor corrosion resistance.
Platinum-iridium AlloyPt / Besides aqua acid and ammonium salt,almost have the corrosion resistance to all acid,alkali and salt solution.
10c0.01 / 0.016 / 0.02 / 0.025 / 0.03 / 0.04 / 0.05 / 0.06 / 0.08 / 0.10 / 0.12 / 0.16 / 0.18 / 0.20 / 0.25
Manufacturer-reported specifications
Display: 4-line English LCD display,display the data of instantaneous flow,cumulative flow, heat (cold), the temperature of inlet and outlet water. Current Output: 4-20mA (can set flow or energy) Pulse Output: Can choose full frequency or pulse equivalent output, the maximum frequency value of output is 5kHz. Communication: RS485(MODBUS or BACNET), Data logger, Bluetooth Power Supply: 220VAC, 24VDC, 100-240VAC Temperature: -20 ℃ ~ 60 ℃ Humidity: 5% ~ 95% Protection: IP65 (converter); IP67, IP68 (sensor) Structure: Compact or Remote Diameter: DN10
