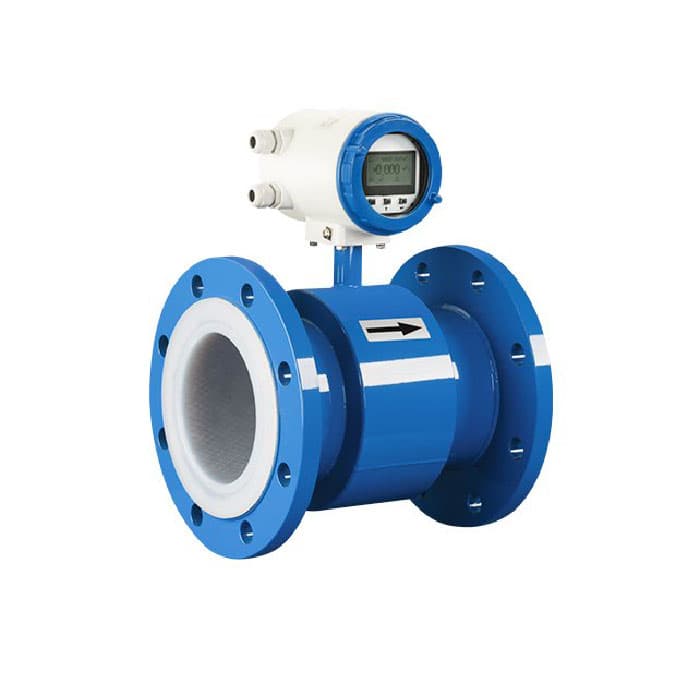

MAG-11 Electromagnetic Flow Meter Flange Connection

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerLanry Instruments

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizes2″ / 3″ / 4″ / 6″

MaterialCode / Performance of Corrosion Resistance

ConnectionGB9119 (Can connect with HG20593-2009 flange directly),JIS,ANSI or customized.)

Reported size range; individual configurations require confirmation

Instrument specifications

Display4-line English LCD display,display the data of instantaneous flow,cumulative flow, heat (cold), the temperature of inlet and outlet water.

Current Output4-20mA (can set flow or energy)

Pulse OutputCan choose full frequency or pulse equivalent output, the maximum frequency value of output is 5kHz.

CommunicationRS485(MODBUS or BACNET), Data logger, Bluetooth

Power Supply220VAC, 24VDC, 100-240VAC

Temperature-20 ℃ ~ 60 ℃

Humidity5% ~ 95%

ProtectionIP65 (converter); IP67, IP68 (sensor)

StructureCompact or Remote

ApplicationAll conductive liquid including water,beverage,various of corrosive media and liquid-solid two-phase fluid (mud,paper pulp).

DiameterDN10-DN2000

Pressure0.6 ~ 4.0 Mpa

Electrode MaterialSS316L, Hc, Hb, Ti, Ta, W, Pt

Lining MaterialNe, PTFE, PU, FEP, PFA

Temperature-40 ℃ ~ 80℃

Shell MaterialCarbon Steel (Stainless Steel can be customized)

Protection LevelIP65, IP67, IP68

ConnectionGB9119 (Can connect with HG20593-2009 flange directly),JIS,ANSI or customized.)

Temperature sensorPT1000 (optional)

Pipe DiameterPressure (Mpa) / Lining Material / Dimension (mm) / Connection size / Weight (kg)

FEPNe / PU / PTFE / PFA / L / D / H / K / N x φ

DN104.0 / O / / / / O / 150 / 95 / 142 / 60 / 4 x 14 / 3.5

DN15O / / O / O / O / 65

DN20O / / O / O / O / 105 / 147 / 75 / 4.5

DN25O / / O / O / O / 115 / 152 / 85

DN32O / / O / O / O / 140 / 172 / 100 / 4 x 18 / 6.5

DN40O / / O / O / O / 150 / 177 / 110 / 7.0

DN50O / O / O / O / O / 200 / 165 / 205 / 125 / 9.5

DN65O / O / O / O / O / 185 / 216 / 145 / 8 x 18 / 12

DN80O / O / O / O / O / 200 / 228 / 160 / 15

DN1001.6 / O / O / O / O / O / 250 / 220 / 258 / 180 / 17

DN125O / O / O / O / O / 250 / 284 / 210 / 21

DN150O / O / O / O / O / 300 / 285 / 315 / 240 / 8 x 22 / 28

DN2001.0 / O / O / O / O / O / 350 / 340 / 366 / 295 / 36

DN250O / O / O / O / O / 400 / 395 / 420 / 350 / 12 x 22 / 49

DN300O / O / O / O / O / 450 / 445 / 470 / 400 / 61

10c0.01 / 0.016 / 0.02 / 0.025 / 0.03 / 0.04 / 0.05 / 0.06 / 0.08 / 0.10 / 0.12 / 0.16 / 0.18 / 0.20 / 0.25

10b0.03 / 0.04 / 0.05 / 0.06 / 0.07 / 0.08 / 0.1 / 0.12 / 0.16 / 0.2 / 0.3 / 0.4 / 0.5 / 0.6 / 0.7

10a0.03 / 0.05 / 0.06 / 0.08 / 0.1 / 0.12 / 0.16 / 0.2 / 0.3 / 0.4 / 0.5 / 0.6 / 0.7 / 0.8 / 1.0

100.1 / 0.16 / 0.2 / 0.25 / 0.3 / 0.4 / 0.5 / 0.6 / 0.8 / 1.0 / 1.2 / 1.6 / 2.0 / 2.5 / 2.8

Manufacturer-reported specifications

Display: 4-line English LCD display,display the data of instantaneous flow,cumulative flow, heat (cold), the temperature of inlet and outlet water. Current Output: 4-20mA (can set flow or energy) Pulse Output: Can choose full frequency or pulse equivalent output, the maximum frequency value of output is 5kHz. Communication: RS485(MODBUS or BACNET), Data logger, Bluetooth Power Supply: 220VAC, 24VDC, 100-240VAC Temperature: -20 ℃ ~ 60 ℃ Humidity: 5% ~ 95% Protection: IP65 (converter); IP67, IP68 (sensor) Structure: Compact or Remote Application: All
