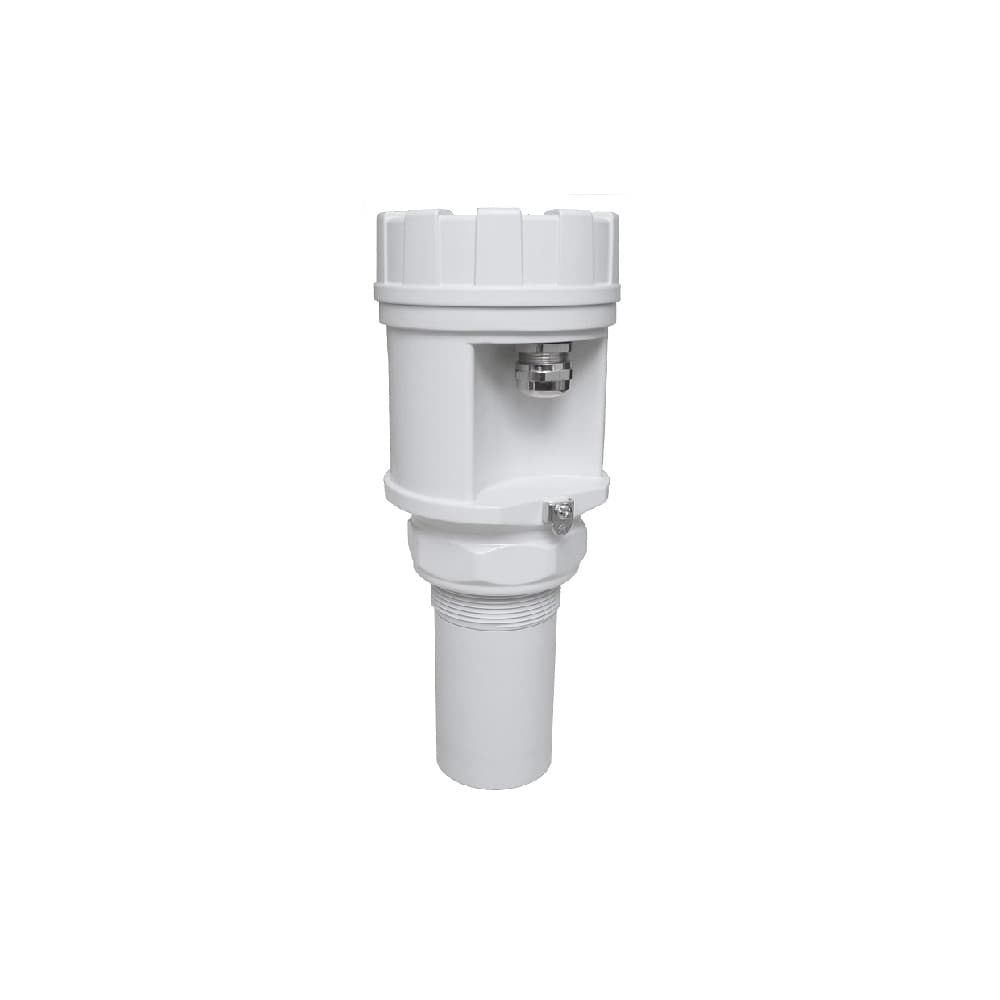

LMU Serials Compact Type Ultrasonic Level Meter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerLanry Instruments
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialThe electronic unit : metalThe sensor: ABS
ConnectionTo confirm
Instrument specifications
TypeLMU
Power supplyDC24V (±10%) 30mA
Display4 digit LCD
Accuracy0.2% of full span (in air)
Output current4-20mA
Output load0-500Ω
Temperature range-40℃~80℃
Pressure range±0.1MP (press definitely)
Measure cycle1 second (changeable )
Beam angle8º(3db) for range :4m 6m 8m; 5º(3db) for range :12m 15m 20m 30m
Parameter set up3 induction buttons
Cable connectionPG13.5
MaterialThe electronic unit : metalThe sensor: ABS
Protect gradeIP67
FixScrew or Flange
Manufacturer-reported specifications
Type: LMU Power supply: DC24V (±10%) 30mA Display: 4 digit LCD Accuracy: 0.2% of full span (in air) Output current: 4-20mA Output load: 0-500Ω Temperature range: -40℃~80℃ Pressure range: ±0.1MP (press definitely) Measure cycle: 1 second (changeable ) Beam angle: 8º(3db) for range :4m 6m 8m; 5º(3db) for range :12m 15m 20m 30m Parameter set up: 3 induction buttons Cable connection: PG13.5 Material: The electronic unit : metalThe sensor: ABS Protect grade: IP67 Fix: Screw or Flange
