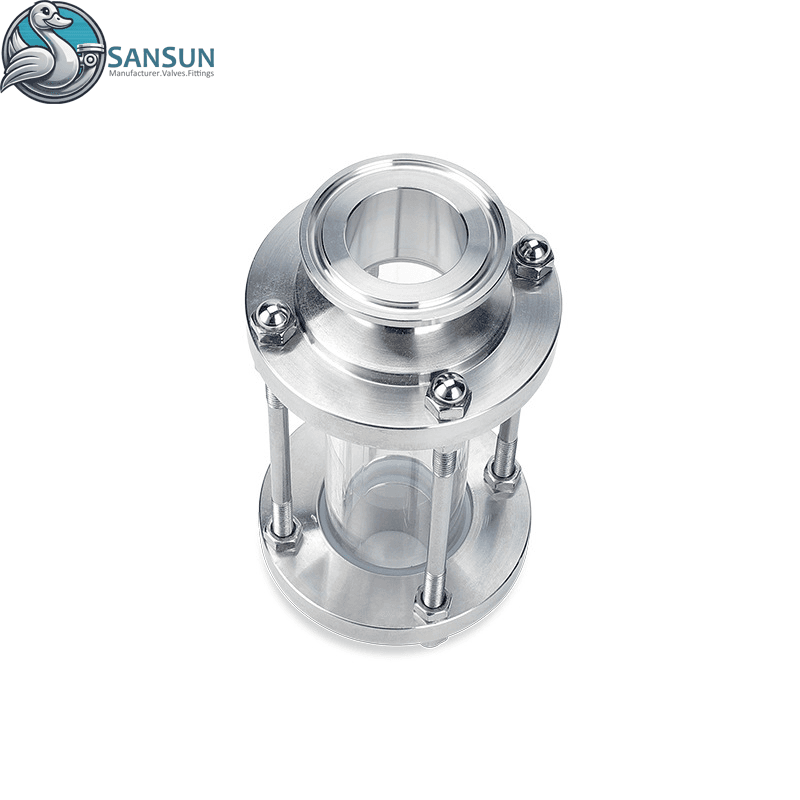

Hygienic Stainless Steel Tri Clamp Straight Inline Sight Glass AISI304 AISI316L For AI Data Center Liquid Cooling CDU Closed Loop Coolant Pipeline Monitoring SANSUN

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSANSUN

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizes2″ / 3″ / 4″ / 6″

MaterialSS304 SS316L

ConnectionClamp End,Thread End,Weld End

Reported DN range; individual configurations require confirmation

Manufacturer-reported specifications

Size: 1" 1 1/2" 2" 2 1/2" 3" 3 1/2" 4" DN25 DN32 DN40 DN50 DN65 DN80 DN100 Material: SS304 SS316L Availability: : Quantity: : : Size: 1''-4''(DN25-DN200) Material: AISI304/AISI316L ,1.4404/1.4301 (Forged) Seal Material: EPDM Surface Finishing: Ra < 0.4-0.8 µm (32 µin) Max Working Pressure: 145psi (10bar) Helium Leak Test: <1 × 10⁻⁹ mbar・l/s Cleanliness: Passivation treatment, Conforms to ASTM A380 standard Availably standard: DIN/3A Connection type: Clamp End,Thread End,Weld End Certification: US 3-A, FDA, CE PED/2014/68/EC, Certification Application
