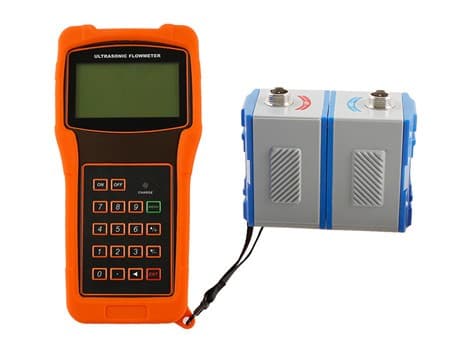

HUF Portable Ultrasonic Flow Meter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerHOLYKELL
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
Linearity0.5%
Repeatability0.2%
Accuracy±1% of reading at rates>0.2 mps
Response Time0-999 seconds, user-configurable
Velocity±10 m/s
Pipe Size25mm-6000mm
Totalizer7-digit totals for net, positive and negative flow respectively
Liquid TypesVirtually all liquids
SecuritySetup values Modification Lockout. Access code needs unlocking
Display4x8 Chinese characters or 4x16 English letters
Communication InterfaceRS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry.
Transducer Cord LengthStandard 5m x 2, optional 10m x 2
Power Supply3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data LoggerBuilt-in data logger can store over 2000 lines of data
Manual Totalizer7-digit press-key-to-go totalizer for calibration
Housing MaterialABS
Case Size210x90x30mm
Handset Weight500g with batteries
Manufacturer-reported specifications
The is designed based on the flow measurement method of the clamp-on ultrasonic flow meter. The measurement process does not need to damage the pipeline or contact the measurement medium. The built-in rechargeable battery can work continuously for more than 12 hours.
