Product gallery · 2 views
Electric valves / CN-b0daa25bbaed

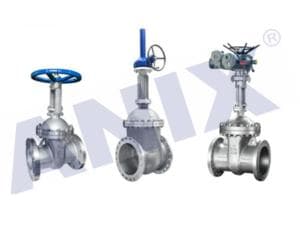

High performance DIN ，GB electric gate valve
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerANIX
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialWCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL)
ConnectionTo confirm
Manufacturer-reported specifications
Design standards Design and manufacture: GB/T 12234, DIN 3352 Structural length: GB/T 12221, DIN3202 Flange connecting size: JB/T 79, DIN 2543 Inspection: JB/T 9092, DIN 3230 Performance Specification Nominal pressure: 1.6, 2.5, 4.0, 6.3Mpa Strength test: 2.4, 3.75, 6.0, 9.45Mpa Seal test: 1.76, 2.75, 4.4, 6.93Mpa Back seal test: 1.76, 2.75, 4.4, 6.93Mpa Gas seal test: 0.6Mpa Valve body material: WCB(C), CF8(P), CF3(PL), CF8M(R), CF3M(RL) Applicable media: water, steam, oil products, nitric acids and acetic acids Applicable temperature: -29℃ to
