Product gallery · 1 view
Valves / CN-c3ee034b3217

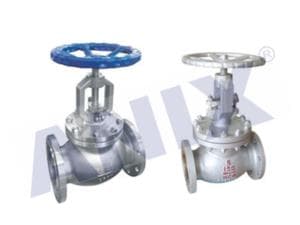

High performance ANIS and JIS globe valves
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerANIX
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialWCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL)
ConnectionTo confirm
Manufacturer-reported specifications
Design standards Design & Manufacture as per: ASME B16.34、BS 1873 Face to face dimension as per: ASME B16.10 Connection ends dimension as per: ASME B16.5、JIS B2220 Inspection and test as per: ISO 5208、API 598、BS 6755 Performance Specification Nominal pressure:150，300LB,10K,20K Strength test:PT3.0,7.5,2.4,5.8MPa Seal tese:2.2，5.5，1.5，4.0MPa Gas seal test:0.6MPa Valve body material:WCB(C),CF8(P),CF3(PL),CF8M(R),CF3M(RL) Suitable medium:water,steam,oil,products,nitric Suitable temperature:-29°C~425°C Product Structure
