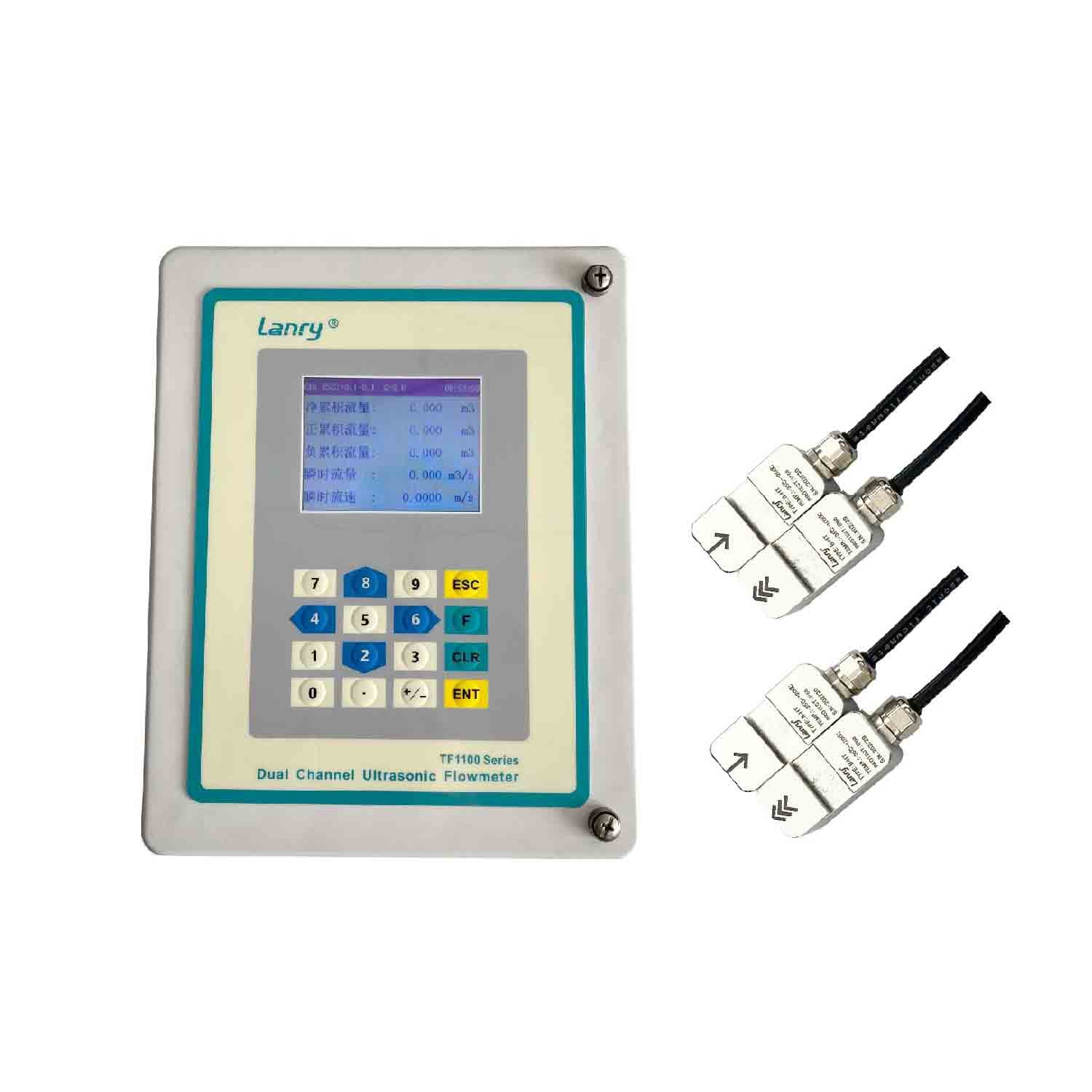

Dual-channel Transit-Time Clamp On Ultrasonic Flowmeter TF1100-DC

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerLanry Instruments

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizesTo confirm

MaterialTo confirm

ConnectionTo confirm

Instrument specifications

Measurement principleUltrasonic transit-time difference correlation principle

Flow velocity range0.01 to 15 m/s, bi-directional

Resolution0.1mm/s

Repeatability0.15% of reading

Accuracy±0.5% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s

Response time0.5s

Sensitivity0.001m/s

Damping of displayed value0-99s(selectable by user)

Liquid Types Supportedboth clean and somewhat dirty liquids with turbidity <10000 ppm

Power SupplyAC: 85-265V DC: 24V/500mA

Enclosure typeWall-mounted

Degree of protectionIP66 according to EN60529

Operating temperature-10℃ to +60℃

Housing materialFiberglass

Display4.3’’ color LCD 5 lines display, 16 keys

UnitsUser Configured (English and Metric)

RateRate and Velocity Display

Totalizedgallons, ft³, barrels, lbs, liters, m³,kg

Thermal energyunit GJ，KWh can be optional

Communication4~20mA(accuracy 0.1%),OCT, Relay, RS485 (Modbus),data logger

SecurityKeypad lockout, system lockout

Size244*196*114mm

Weight2.4kg

Degree of protectionStandard IP65; IP67, IP68 can be optional

Suited Liquid Temperature-35℃~200℃

Pipe diameter range20-50mm for type B, 40-4000mm for type A

Transducer SizeType A 46(h)*31(w)*28(d)mm

Material of transducerAluminum or Stainless steel SUS304

Cable LengthStd:10m

Temperature SensorPt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1%

Manufacturer-reported specifications

Measurement principle: Ultrasonic transit-time difference correlation principle Flow velocity range: 0.01 to 15 m/s, bi-directional Resolution: 0.1mm/s Repeatability: 0.15% of reading Accuracy: ±0.5% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s Response time: 0.5s Sensitivity: 0.001m/s Damping of displayed value: 0-99s(selectable by user) Liquid Types Supported: both clean and somewhat dirty liquids with turbidity <10000 ppm Power Supply: AC: 85-265V DC: 24V/500mA Enclosure type: Wall-mounted Degree of protection: IP66 according to EN60529 Operating temperature: -10℃ to
