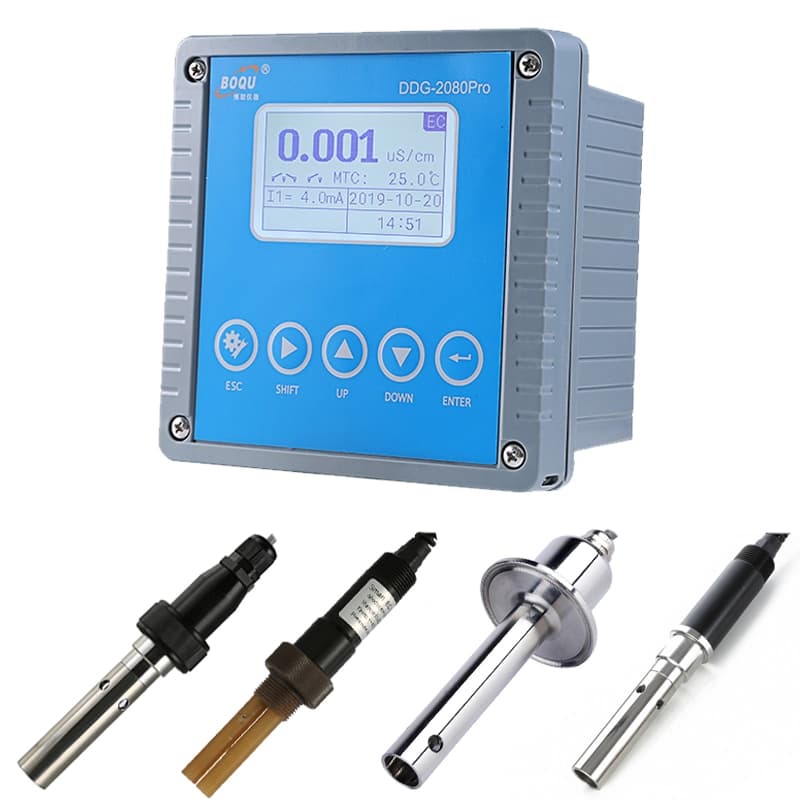

DDG-2080Pro Online Conductivity Meter

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerBOQU

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizesTo confirm

MaterialTo confirm

ConnectionTo confirm

Instrument specifications

ModelDDG-2080PRO Online Conductivity Meter

MeasurementConductivity,TDS,Resistivity,Salinity,Temperature

Measurement range0.00uS/cm~2000000.00 uS/cm(0.00uS/cm~2000.00 mS/cm)0.00g/L~80.00 g/L(ppt)0.00mg/L~130000.00 mg/L(ppm)0.00MΩ~20.00MΩ-40.0℃~200.0℃(refer to matching electrode)

Accuracy1%, ±0.2℃

Housing materialABS Flame retardant : V0

Power90 – 260V AC 50/60Hz

Consumption4W

OutputTwo ways 4-20mA output

CommunicationRS485 Modbus

RelayTwo relays,5A/250V AC 5A/30V DC

Temperature.CompPT1000/NTC10K

Dimension144×144×104mm

Hole size138*138mm

ProtectionIP65

Data logger1000times

LanguageEnglish/简体中文

InstallationPanel/Wall/Pipe mounted

Manufacturer-reported specifications

Model: DDG-2080PRO Online Conductivity Meter Measurement: Conductivity,TDS,Resistivity,Salinity,Temperature Measurement range: 0.00uS/cm~2000000.00 uS/cm(0.00uS/cm~2000.00 mS/cm)0.00g/L~80.00 g/L(ppt)0.00mg/L~130000.00 mg/L(ppm)0.00MΩ~20.00MΩ-40.0℃~200.0℃(refer to matching electrode) Accuracy: 1%, ±0.2℃ Housing material: ABS Flame retardant : V0 Power: 90 – 260V AC 50/60Hz Consumption: 4W Output: Two ways 4-20mA output Communication: RS485 Modbus Relay: Two relays,5A/250V AC 5A/30V DC Temperature.Comp: PT1000/NTC10K Dimension: 144×144×104mm Hole size: 138*138mm Protection: IP65 Data logger: 1000times Language: English/简体中文 Installation: Panel/Wall/Pipe mounted
