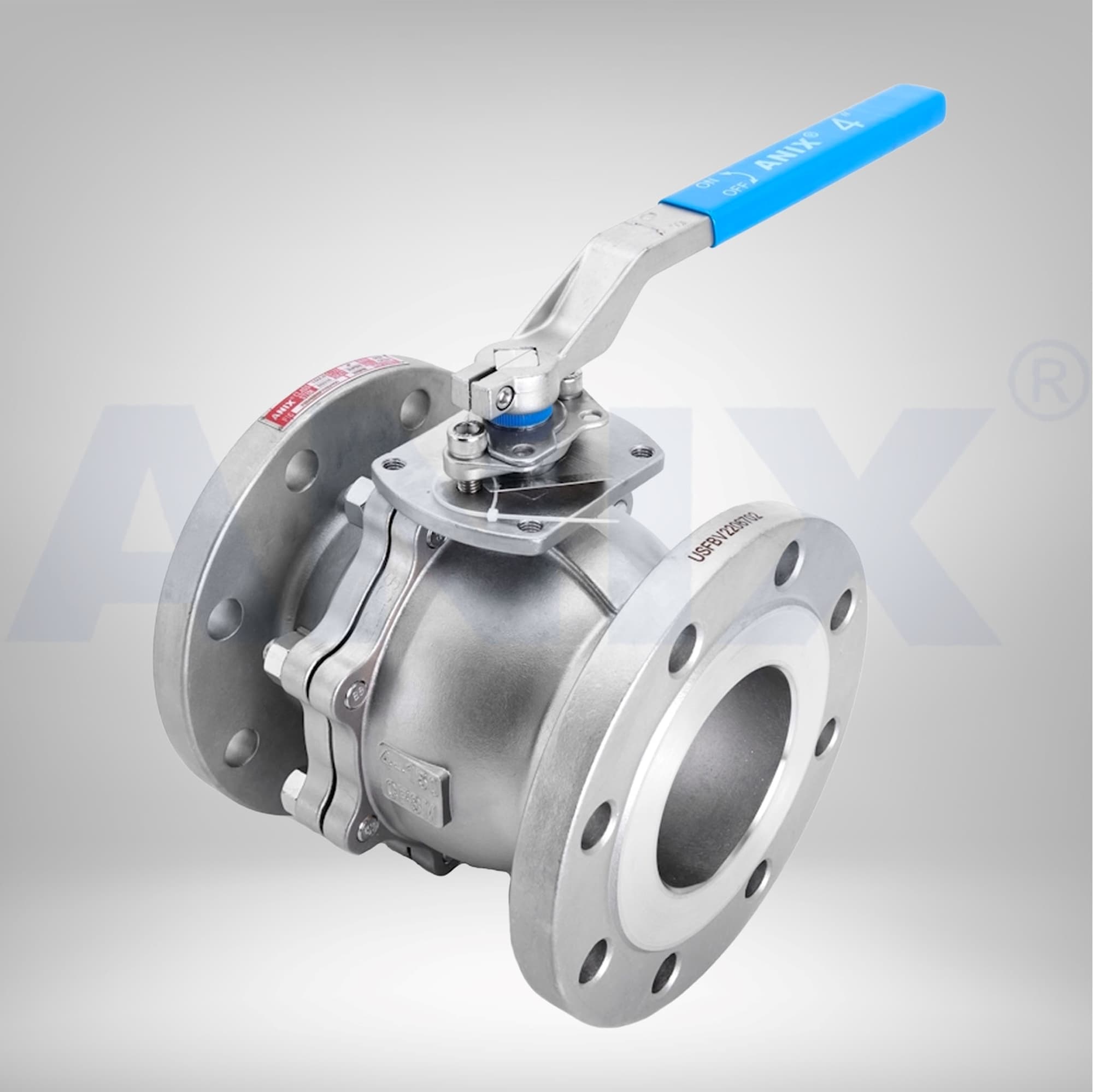

ANIX Stainless Steel Flanged Ball Valve ANSI Class 150 / 300
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerANIX
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizes2″ / 3″ / 4″ / 6″
MaterialCF8M Cast Stainless Steel Body
ConnectionFlange End Connection according to ASME B16.5
Reported size range; individual configurations require confirmation
Manufacturer-reported specifications
Full Port Floating Ball Valve • Size: 1/2" to 1 1/4" (Solid SS316 Ball, Lever) • Size: 1 1/2" to 8" (Hollow or Solid SS316 Ball, Lever) • Size: 6" to 12" (Hollow or Solid SS316 Ball, Gear) Features • CF8M SS316 RFFE 2-PC SS Full Port Ball Valve ANSI 150/300 • CF8M Cast Stainless Steel Body • Full Port / Full Bore • SS316 Ball & Stem, RPTFE Seat • Flange End Connection according to ASME B16.5 • Lockable
