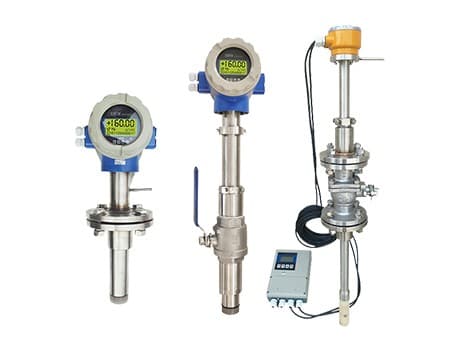

4801 Plug In Electromagnetic Flowmeter
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerHOLYKELL
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizesTo confirm
MaterialTo confirm
ConnectionTo confirm
Instrument specifications
Accuracy±1.5%
Pipe sizeDN80—2000mm
Operating pressureLess than 1.6 Mpa
Medium Temp0℃ to 70℃
Flow range0.01 m/s to 10 m/s
Power ConsumptionLess than 20 W
Protection gradeIP65 for the transmitter(split & integrated type) IP68 for the sensor of the split type IP65 for the sensor of the integrated type
Connection methodFlange or Thread
Manufacturer-reported specifications
is a type of flowmeter divided by structure. Based on Faraday's law of electromagnetic induction, the conductive medium in the measuring tube is equivalent to the conductive metal rod in the Faraday test, and the two electromagnetic coils at the upper and lower ends generate a constant magnetic field.
