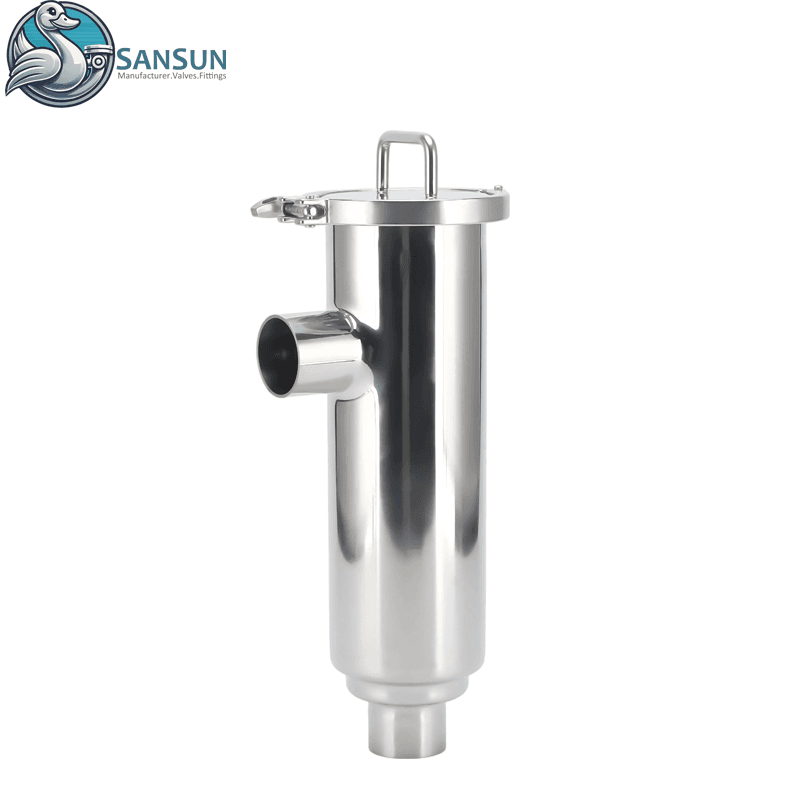

304 316L Stainless Steel Welded Angle Filter for Data Center Liquid Cooling

Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.

ManufacturerSANSUN

Reference priceRequest quote

Minimum orderTo confirm

Trade termsTo confirm

Pipe sizes2″ / 3″ / 4″

MaterialSS304 SS316L

ConnectionClamp End,Thread End,Weld End

Reported DN range; individual configurations require confirmation

Manufacturer-reported specifications

Size: 1" 1 1/2" 2" 2 1/2" 3" 3 1/2" 4" DN25 DN32 DN40 DN50 DN65 DN80 DN100 Material: SS304 SS316L Availability: : Quantity: : : Size: 1"-4" (DN25-DN100) Valve Body Material: AISI304/AISI316L ,1.4404/1.4301 (Forged) Valve Disc Material: AISI304/AISI316L ,1.4404/1.4301 (Forged) Seal Material: EPDM, Silicone Surface Finishing: Ra < 0.4-0.8 µm (32 µin) Max Working Pressure: 145psi (10bar) Helium Leak Test: <1 × 10⁻⁹ mbar・l/s Cleanliness: Passivation treatment, Conforms to ASTM A380 standard Ofcores: Metal Mesh,Pertorated Plate,Wedge Wire Availably standard:
