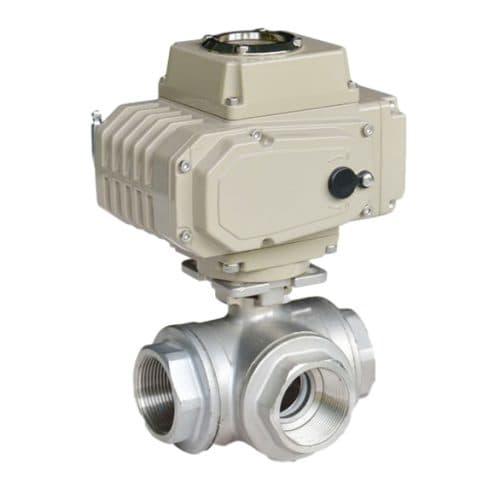

3 way ball valve t port l port with electric actuator
Development import — not technically reviewed. Manufacturer-sourced catalog entry. Final specifications, availability, and suitability require confirmation.
ManufacturerPOV Valve
Reference priceRequest quote
Minimum orderTo confirm
Trade termsTo confirm
Pipe sizes2″
MaterialCF8,CF8M,CF3M
ConnectionT port and L port
Explicit nominal size mentions; configuration requires confirmation
Manufacturer-reported specifications
Body: CF8,CF8M,CF3M Ball: SS304,SS316,SS316L Body stlye: T port and L port Stem: Stainless Steel Seats: PTFE Size: 1/2″ – 2″ (15mm – 50mm) Flange accommodation: PN10 PN16, Class 150LB, JIS 5K 10 Electric actuator: ON-OFF type、Regulation type Power: 12 VDC,24 VAC,24 VDC,220 VAC,120 VAC,380 VAC 50/60 Hz ±10%
